Frame 7M +screws - 19617

19617
Wiring devices / Traditional wiring devices / ARKÉ / Mounting frames

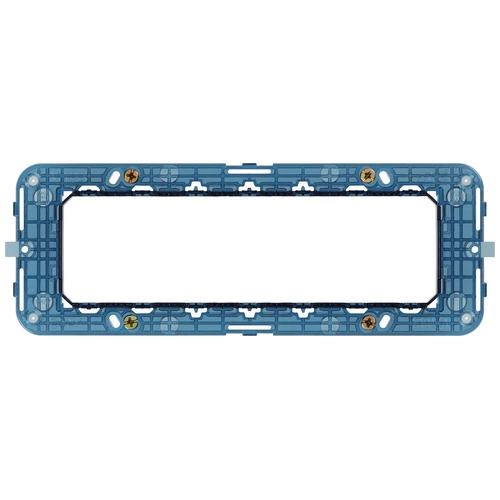

Frame 7M +screws
7-module mounting frame, with screws, for 6/7-module mounting boxes

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Video

• Arké lives in your time

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
7

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 30 NR

---

Barcode

8007352427563

1 NR

20.6x7.3x2.1 [cm]

31.9 [g]

8007352427570

30 NR

28.4x24.4x14.9 [cm]

1,118 [g]

8007352470460

120 NR

59.5x38.5x26.5 [cm]

5,192.4 [g]
