Frame 2centralM +screws

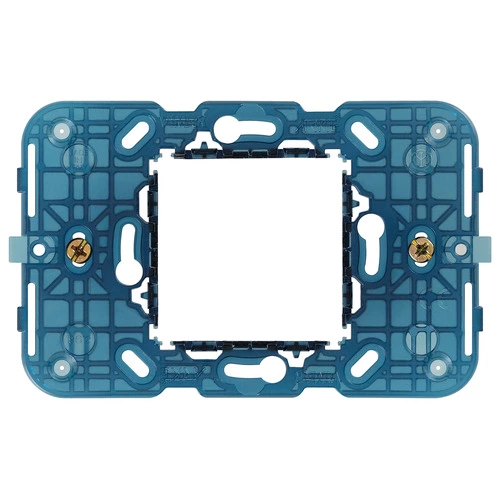

2-central-module mounting frame, with screws, for 3-module mounting frame and 60 mm fixing centres or 56x56 mm mounting box, for horizontal or vertical installation

The transparency helps the installation and the wiring of devices
The honeycomb structure gives structural strength
The slots in the corners enable fixing to the panel
The hooking teeth encourage fixing in series for the installation of multiple modules
Thanks to the central slots, the support can be fixed onto the wall level

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

Video

Arké lives in your time

Drawings

view encumbered art. 19612

PNG DXF

rear view art. 19612

PNG DXF

3D view art. 19612

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
2

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

8007352433502

1 NR

11.8x7.3x2.1 [cm]

23.2 [g]

8007352433526

20 NR

24.4x13.9x11.9 [cm]

563.2 [g]

8007352644380

120 NR

38.5x29.5x25 [cm]

3,832 [g]
