IoT connected gateway 2M Metal - 19597.M

19597.M
Wiring devices / View Wireless wiring devices / ARKÉ / Devices

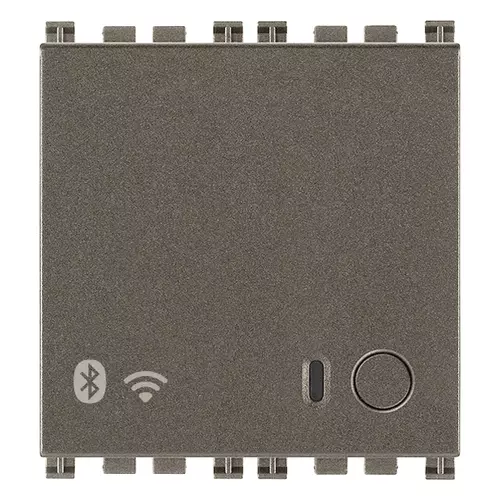

IoT connected gateway 2M Metal
View Wireless gateway, Bluetooth® wireless technology 4.2 Wi-Fi, RGB LED, 100-240 V 50/60 Hz power supply, Metal - 2 modules

• Designed for the user to supervise via the View App and the Alexa, Google Assistant and Siri voice assistants

Product Status
3 - Active

You may also be interested in

19592.0 - 2-way switch IoT connected mechanism

19594.0 - Rolling shutter IoT connected mechanism

19593.M - 16 A IoT connected actuator Metal

03925 - Bluetooth Low Energy RF device

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data
• Questions and answers

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (716 kb)
• Full Multilanguage instructions sheet (818 kb)
• Manuale app View Wireless (16695 kb)
• Manuel appli View Wireless (36896 kb)
• Manual app View Wireless (36835 kb)
• Manual View Wireless app (36774 kb)
• Εγχειρίδιο τεχνικού εγκατάστασης (37151 kb)
• Installationsanleitung View Wireless (36685 kb)

Video

• Creating-the-system
• Customisations
• Bluetooth-wifi-gateway

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Installation bus systems

Class
System interface/media gateway for bus system

Bus system KNX
No

Bus system KNX-RF (Radio Frequent)
No

Bus system radio frequent
Yes

Bus system LON
No

Bus system Powernet
No

Other bus systems
Other

Radio frequent bidirectional
Yes

Model
Bluetooth interface

Mounting method
Flush-mounted

Width in number of modular spacings
2

Demounting protection
No

With LED indication
Yes

Updateable
Yes

Protocol
Other

Provider dependent
No

Visualization
No

Web-Server
Yes

Radio interface
Yes

IR interface
No

Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

06. SUBTEL - Chile

19. NOM - Mexico

29. QCERT - Colombia

37. Marking - Morocco

37. Marking - Morocco

40. Bluetooth technology

41. Wi-Fi CERTIFIED

46. UK PSTI compliance

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352628687

1 NR

6x5.4x5.2 [cm]

54 [g]

8007352746275

60 NR

37.5x30x13.5 [cm]

3,554 [g]

Question:	Does the Internet cable have to be connected?
Answer:	The gateway does not require a wired connection, the device uses the Bluetooth communication protocol and Wi-Fi to communicate with the devices and with the Cloud.

---
