IoT connected dimmer mechanism 120V - 19595.0.120

Pdf
Vimar - 19595.0.120 - IoT connected dimmer mechanism 120V
Vimar - 19595.0.120 - IoT connected dimmer mechanism 120V

19595.0.120
Wiring devices / View Wireless wiring devices / ARKÉ / Devices

IoT connected dimmer mechanism 120V

Product Status
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Other
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
No
Anti-bacterial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
Blue
RAL-number (similar)
7015
Label space/information surface
No
Illumination
Yes
Function lighting
Other
Type of lighting
LED not exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
120 V
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No

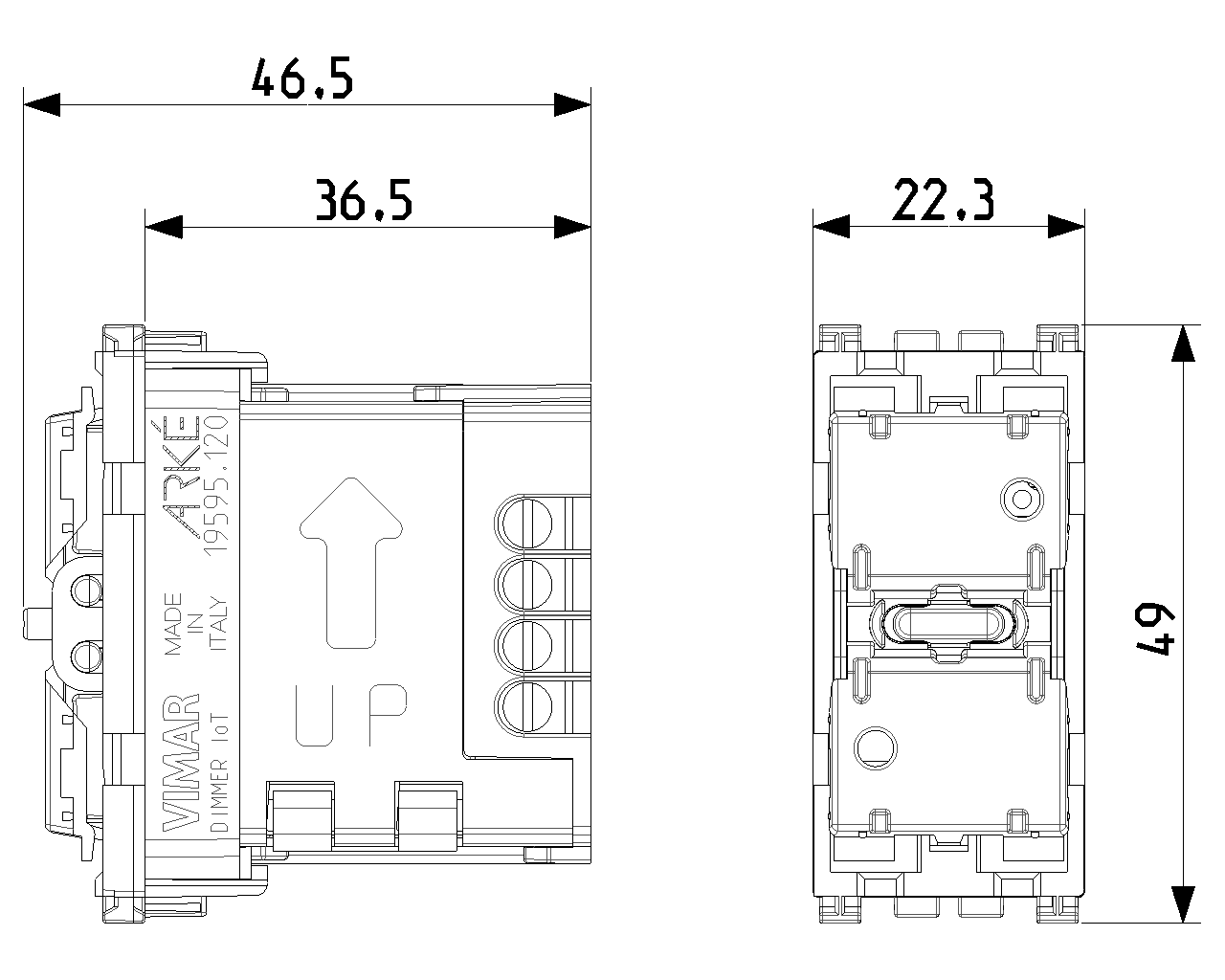

Device width
22,20 mm
Device height
49,00 mm
Device depth
46,40 mm
Built-in depth
36,50 mm
Min. depth of built-in installation box
41,00 mm
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
Yes

42. Zigbee certified

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352707696
1 NR
6x5.4x5.2 [cm]
52.6 [g]
Barcode Qty 60 NR
8007352707702
60 NR
37.5x30x13.5 [cm]
3,354 [g]
