Pocket switch NFC/RFID AGB grey - 19468

Pdf

19468
Wiring devices / Traditional wiring devices / ARKÉ / Devices

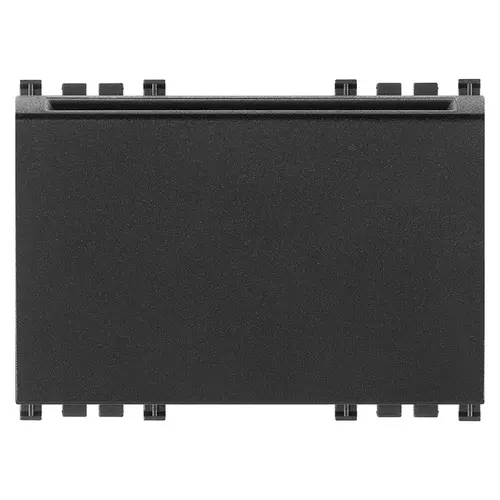

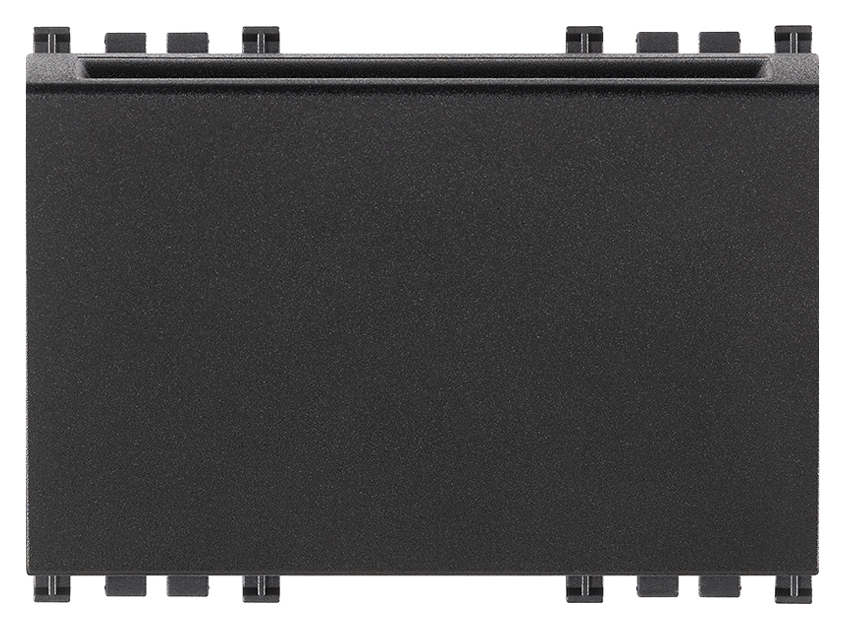

Pocket switch NFC/RFID AGB grey
NFC/RFID electronic transponder card reader for installation inside the room, compatible with AGB Electronic Solutions for Hotels, vertical pocket, 1 relay output 10 A 230 V~ NO (NON SELV), 1 relay output 4 A 230 V~ NO (NON SELV), power supply 120-230 V~ 50/60 Hz, pocket backlighting for visible in darkness, grey - 3 modules. Supplied without card (badge)

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
Buzzer
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
120,00 - 230,00 V
Operating voltage AC 60 Hz
120,00 - 230,00 V
Operating temperature
0 - 40 °C
Degree of protection (IP)
IP20
Colour
Grey
Material
Plastic
Width
67,30 mm
Height
49,00 mm
Depth
50,30 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352573390
1 NR
5.2x5.7x7.6 [cm]
96.9 [g]
Barcode Qty 5 NR
8007352573406
5 NR
21.4x11.6x6 [cm]
543.9 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
