Vertical badge switch 2M grey - 19463

Pdf

19463
Wiring devices / Traditional wiring devices / ARKÉ / Devices

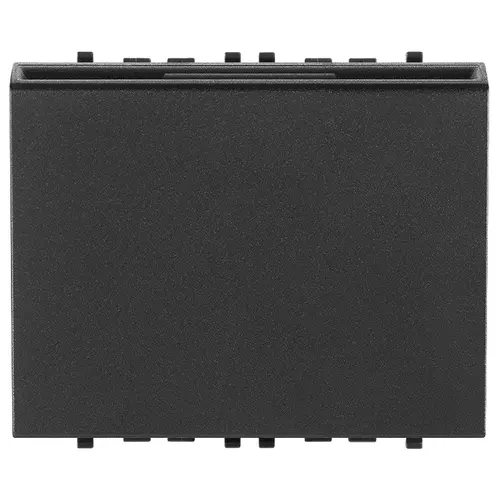

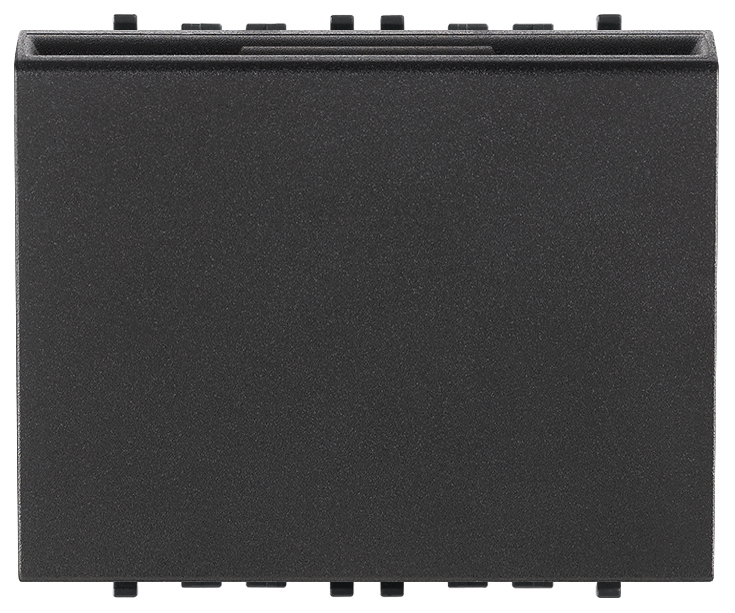

Vertical badge switch 2M grey
Upright electronic badge switch, 4 A 250 V~ NO (NON SELV) change-over relay output, power supply 120-230 V~ 50-60 Hz, slot lighting for location in the dark, trimmer for regulating switch-off time after removing the card, grey - 2 modules. Supplied without ISO card (badge)

Product Status
3 - Active

Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
250,00 - 250,01 V
Operating voltage AC 60 Hz
250,00 - 250,01 V
Operating voltage DC
220,00 - 230,00 V
Operating temperature
5 - 35 °C
Degree of protection (IP)
IP20
Colour
Grey
Material
Plastic
Width
44,80 mm
Height
49,00 mm
Depth
43,50 mm

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352561380
1 NR
5.2x5.7x7.6 [cm]
68.5 [g]
Barcode Qty 5 NR
8007352563766
5 NR
21.4x11.6x6 [cm]
399.3 [g]
Barcode Qty 50 NR
8007352726093
50 NR
30.5x25.5x22.5 [cm]
3,993 [g]
