LED-emergency lamp 3M 120-230V - 19384

19384
Wiring devices / Traditional wiring devices / ARKÉ / Devices

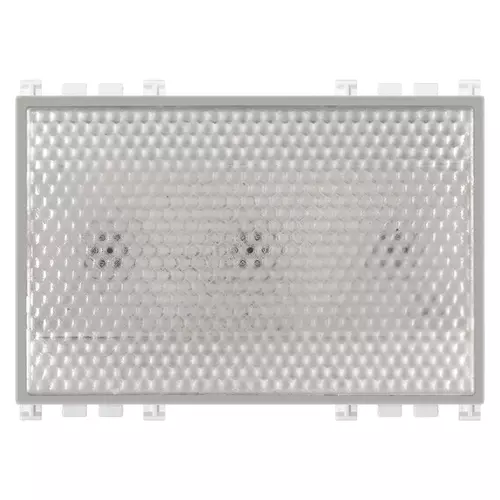

LED-emergency lamp 3M 120-230V
Lamp with high-efficiency LED, supply voltage 120-230 V~ 50-60 Hz, automatic emergency device, 3 rechargeable AAA 1,2 V batteries, 1 hour of operating time, grey - 3 modules

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (992 kb)

Video

• Arké lives in your time

---

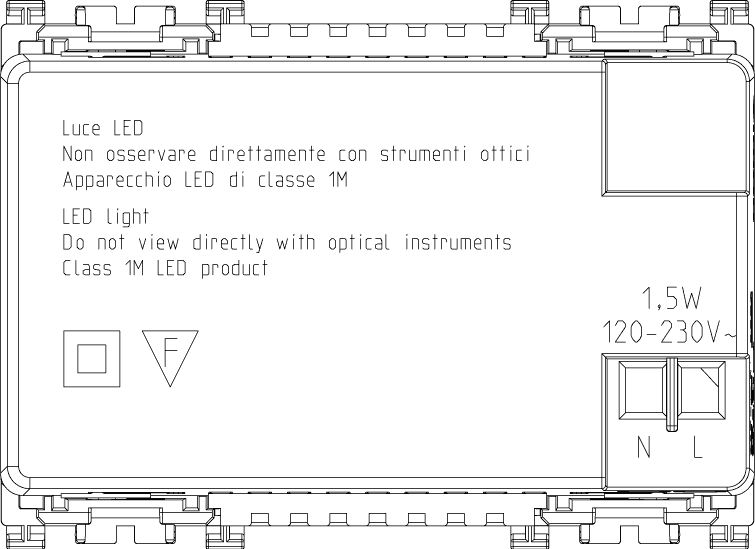

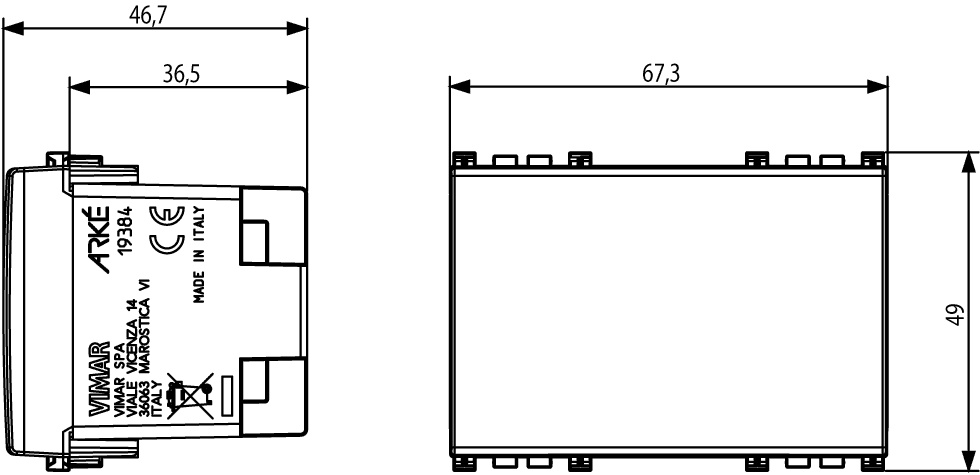

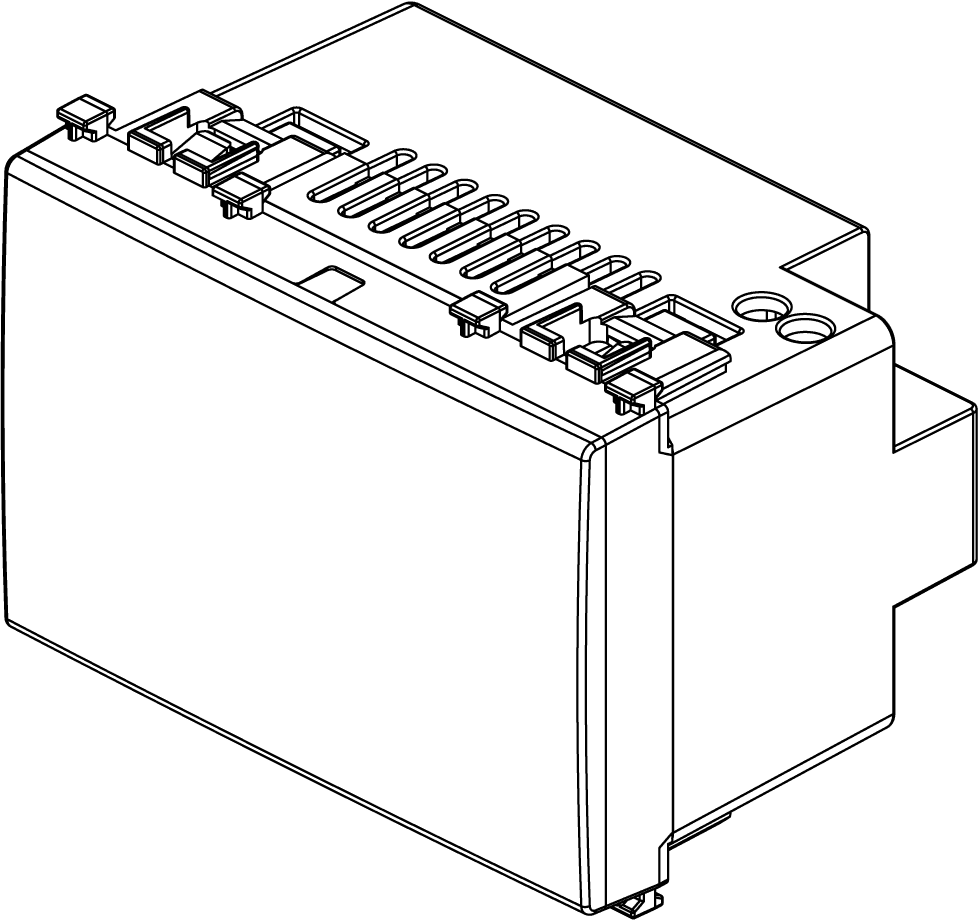

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Luminaires

Class
Emergency luminaire

Mounting method
Built-in

Monitoring equipment
None

With remote switch connection
No

Power supply system
Peripheral (individual battery)

Battery quality
NiMH

Lamp type
LED not exchangeable

With light source
Yes

Housing colour
Colourless

Voltage type
AC

Nominal voltage
120,00 - 230,00 V

Degree of protection (IP)
IP40

Protection class
II

Max. system power
0,50 W

Rated luminous flux according to IEC 62722-2-1
22

Width
67,30 mm

Height/depth
46,70 mm

Built-in height/depth
36,50 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352436640

1 NR

11.2x9.6x9.8 [cm]

168.5 [g]
