USB outlet white - 19345.B

Pdf
Vimar - 19345.B - USB outlet white
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Foto gallery #5
Foto gallery #6
Vimar - 19345.B - USB outlet white

19345.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

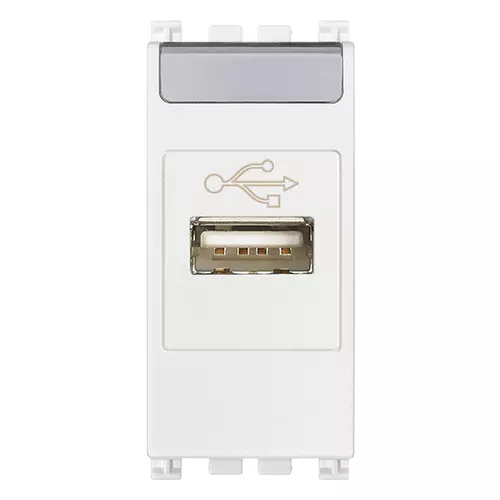

USB outlet white

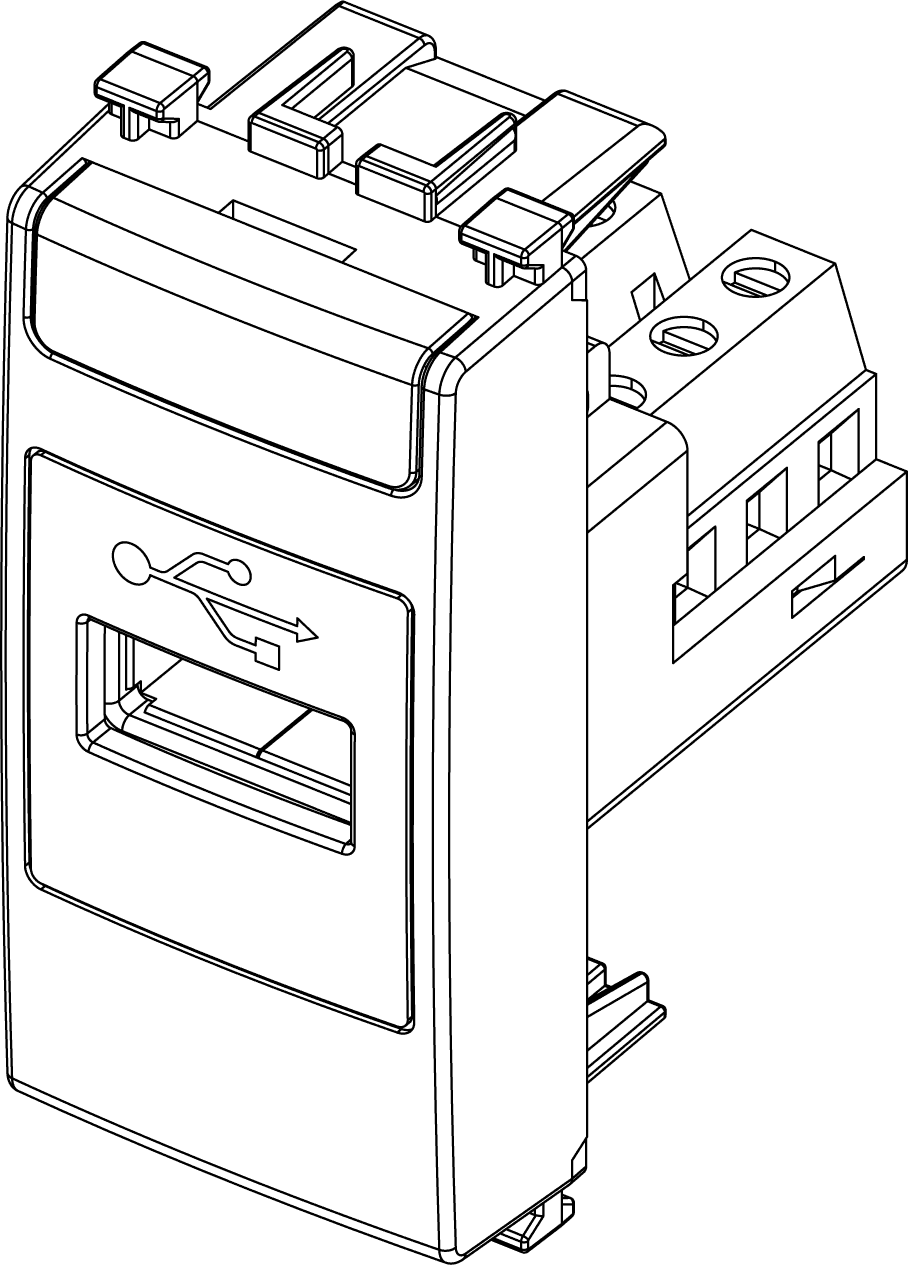

Socket outlet with USB connector, screw terminals, white

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
USB
Support ring
No
With dust cover
No
With hinged lid
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Number of modules (module system)
1
With strain relief
Yes
Luster terminal
No
Suitable for degree of protection (IP)
IP20

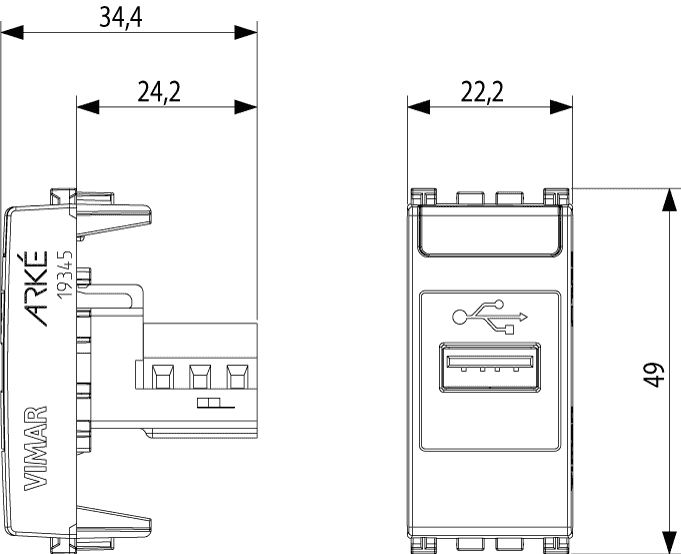

Device width
22,30 mm
Device height
49,00 mm
Device depth
41,40 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352456778
1 NR
5.1x4.3x5.3 [cm]
28.5 [g]
Barcode Qty 10 NR
8007352456785
10 NR
26.9x11.6x4.9 [cm]
358.4 [g]
Barcode Qty 200 NR
8007352642003
200 NR
47.5x27x29 [cm]
7,680 [g]
