Socket with 3 RCA connector grey - 19335

Pdf
Vimar - 19335 - Socket with 3 RCA connector grey
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Foto gallery #5
Foto gallery #6
Vimar - 19335 - Socket with 3 RCA connector grey

19335
Wiring devices / Traditional wiring devices / ARKÉ / Devices

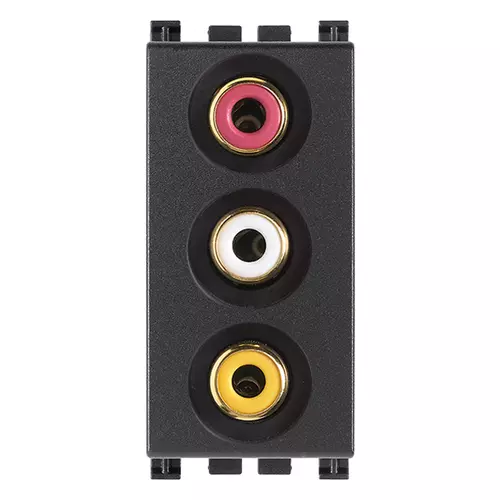

Socket with 3 RCA connector grey
Socket outlet with 3 RCA connectors, screw terminals, grey

Product Status
3 - Active

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
RCA
Support ring
No
With dust cover
No
With hinged lid
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
35,50 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352450882
1 NR
5.1x2.8x5.3 [cm]
36.3 [g]
Barcode Qty 10 NR
8007352450899
10 NR
14.4x11.6x6 [cm]
407.8 [g]
Barcode Qty 120 NR
8007352657069
120 NR
36.5x33x13.5 [cm]
5,315 [g]
