TV-RD-SAT through-line male out.10dB Met - 19300.10.M

Pdf
Vimar - 19300.10.M - TV-RD-SAT through-line male out.10dB Met
Vimar - 19300.10.M - TV-RD-SAT through-line male out.10dB Met

19300.10.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

TV-RD-SAT through-line male out.10dB Met

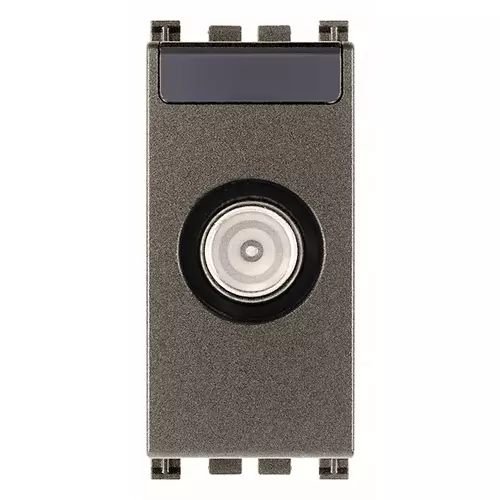

Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, with male connector, connection attenuation 10 dB, Metal

Product Status
3 - Active

Class group
Antenna and satellite technique
Class
Antenna socket box
Model
Loop-through socket
Cover
None
Tap loss at 860 MHz
10,60 dB
Tap loss at 2150 MHz
9,90 dB
Number of outlets
1
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
Aluminium
RAL-number (similar)
9007
Surface protection
Lacquered
Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352598416
1 NR
4.1x2.8x5.3 [cm]
50.1 [g]
Barcode Qty 20 NR
8007352598423
20 NR
21.4x11.6x6 [cm]
1,061 [g]
Barcode Qty 200 NR
8007352634763
200 NR
30.5x25.5x22.5 [cm]
10,950 [g]
