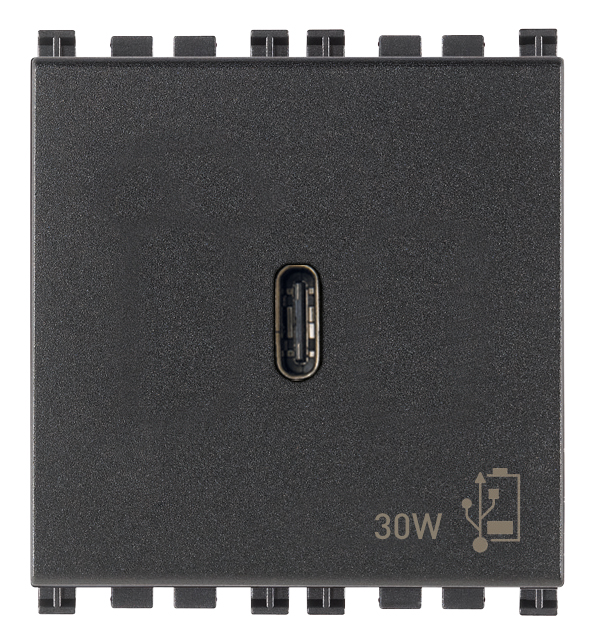

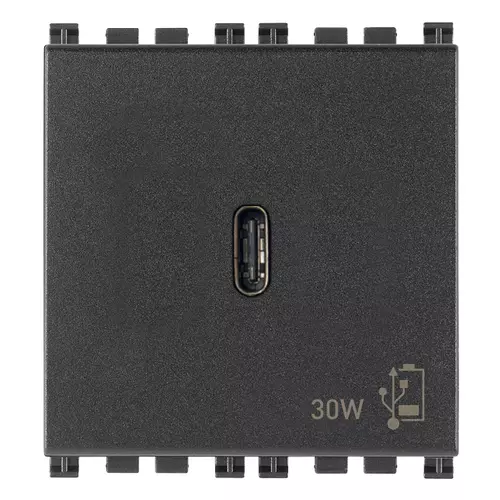

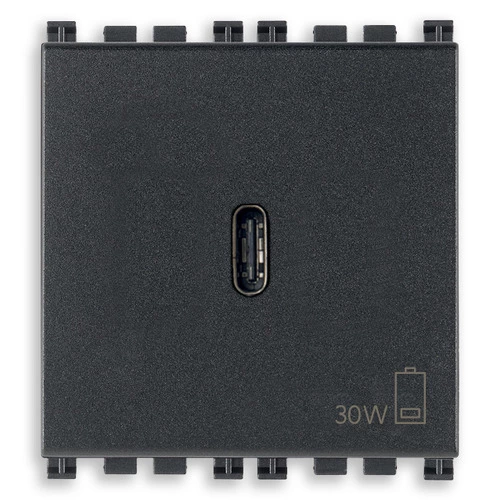

USB-C supply unit 30W PD grey

Pdf

19298
Wiring devices / Traditional wiring devices / ARKÉ / Devices

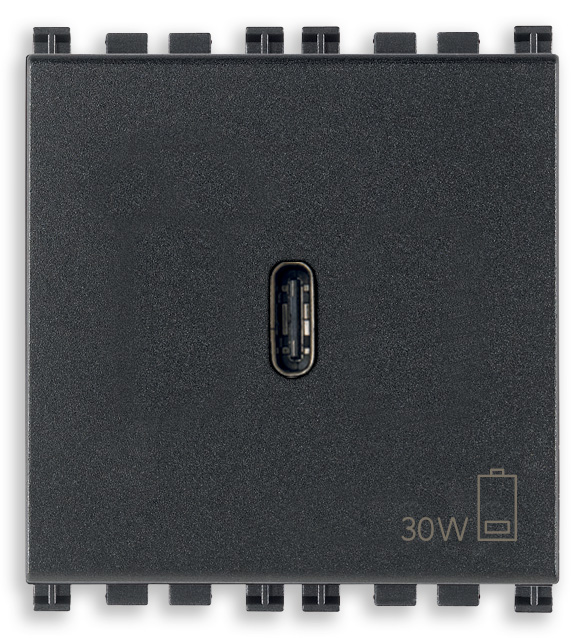

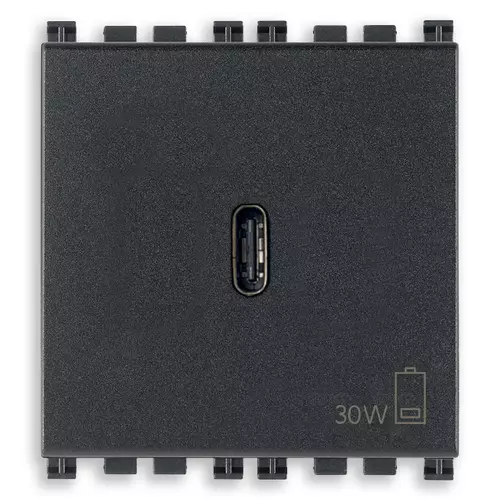

USB-C supply unit 30W PD grey

Device which supports USB Power Delivery fast charge, which provides faster charge levels than conventional technologies

Product Status
3 - Active

Sheets, Manuals, Documentation

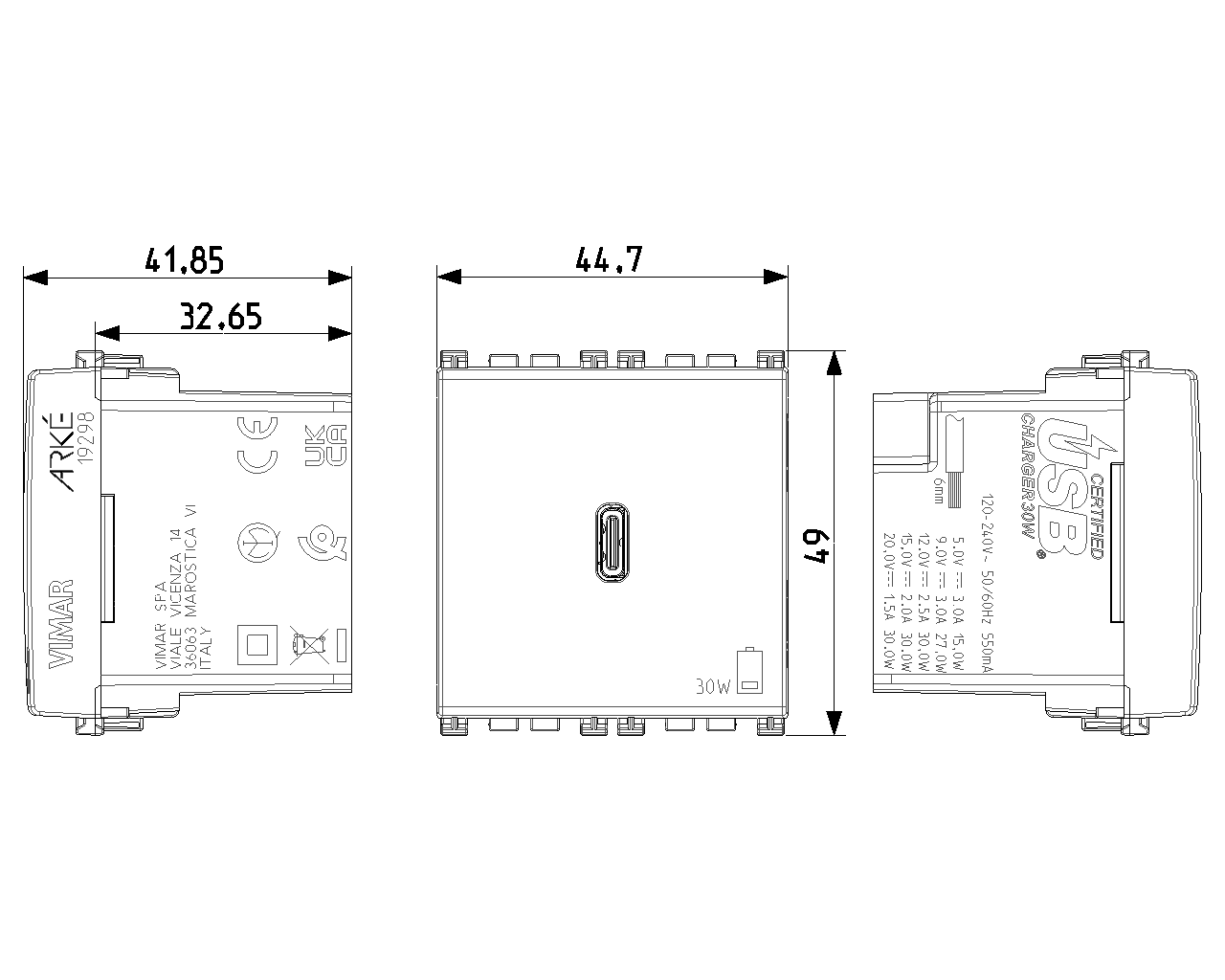

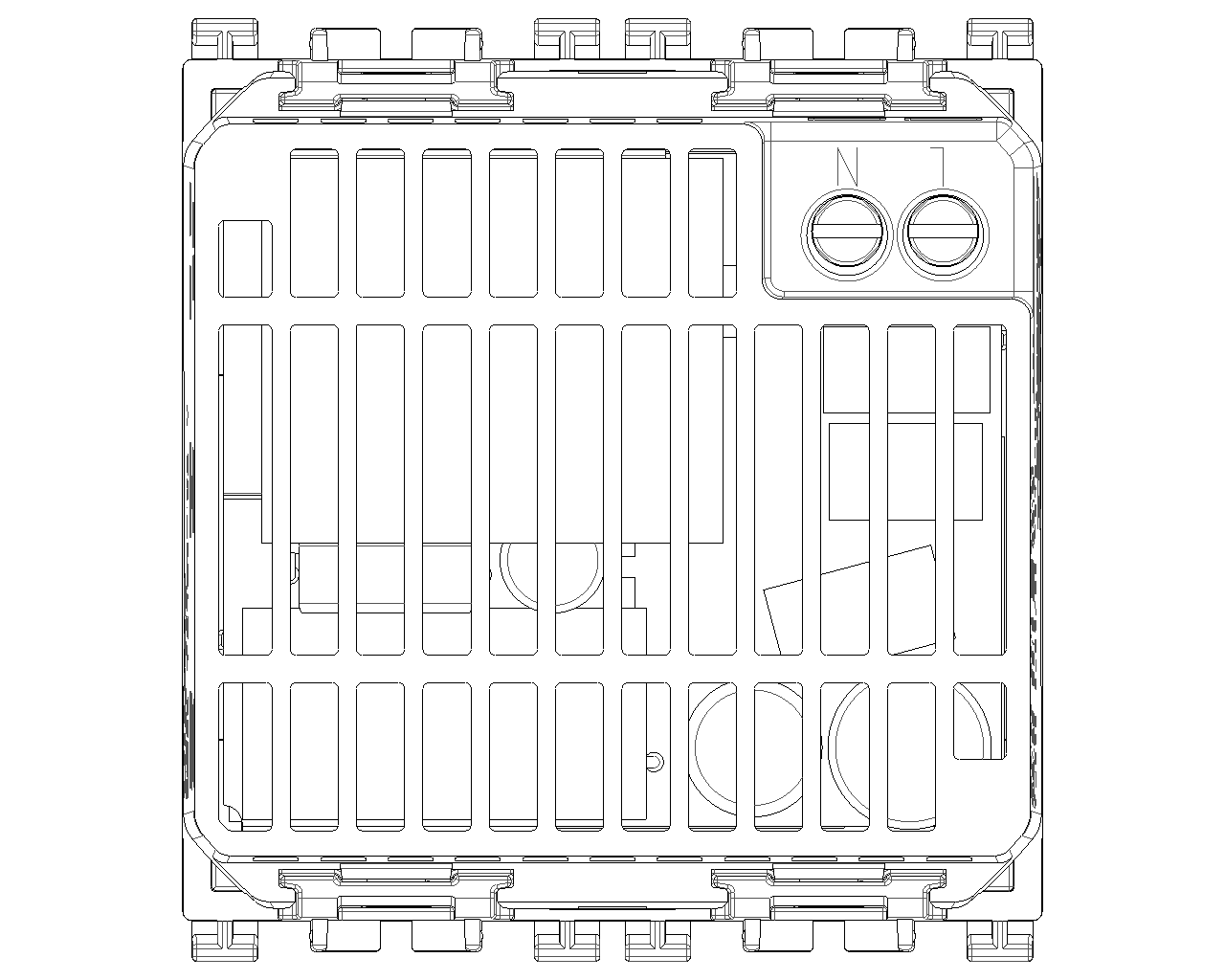

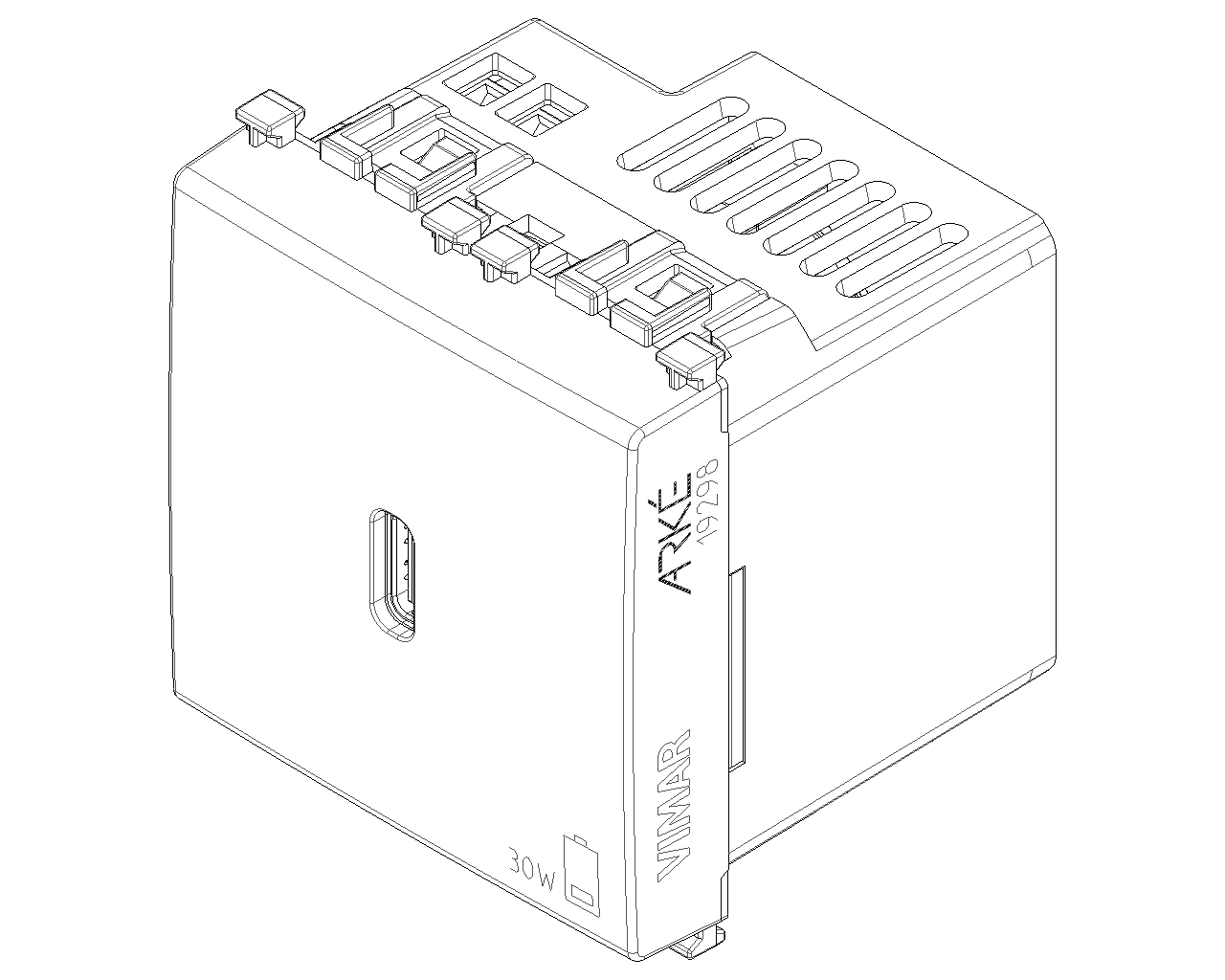

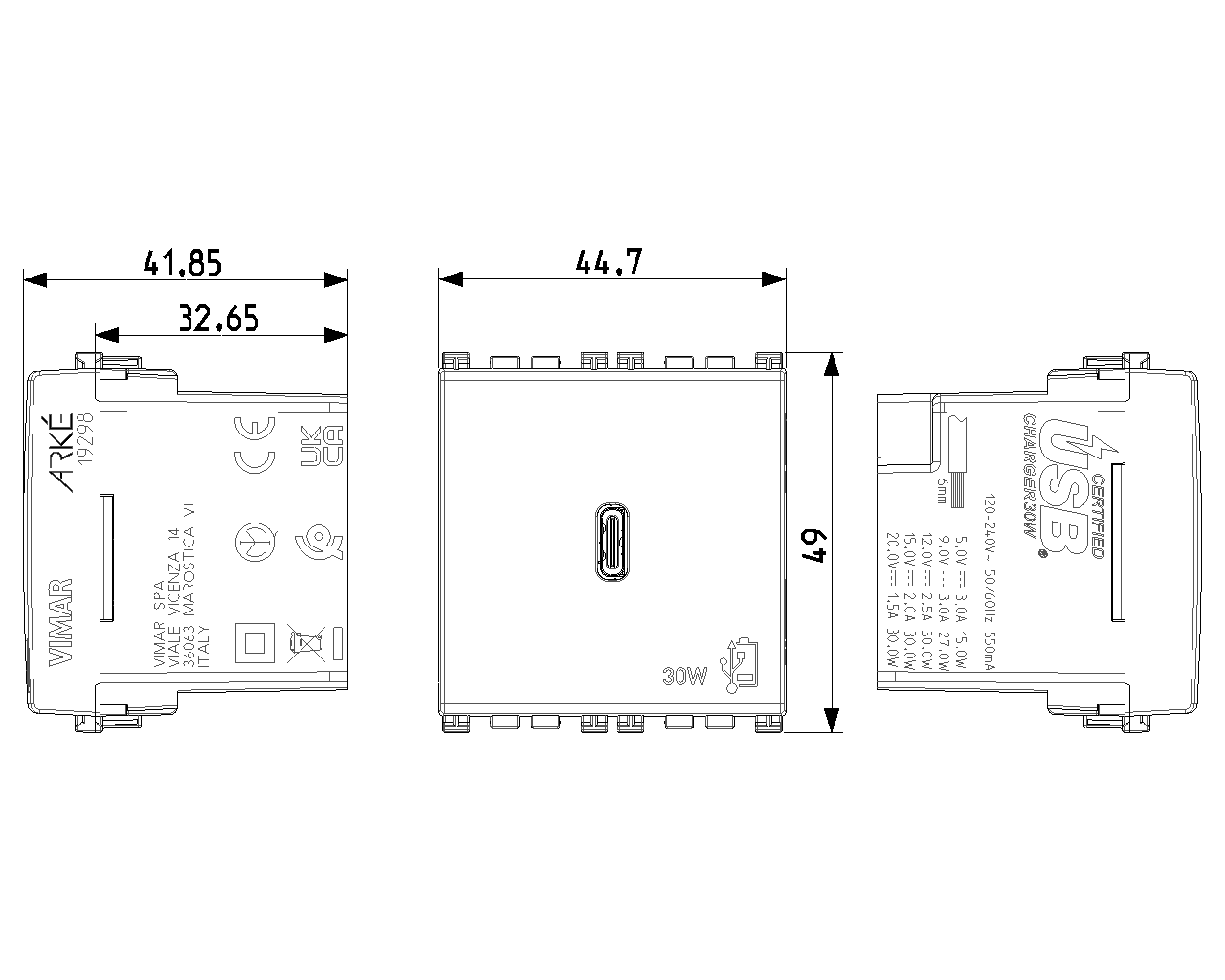

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
USB power supply

Model
Other

Operating voltage
120,00 - 240,00 V

Frequency
50,00 - 60,00 HZ

Max. output current
3 mA

Connection type
Screwed terminal

Mounting method
Flush-mounted

Colour
Grey

RAL-number
7015

Device height
4.900,00 mm

Min. depth of built-in installation box
37 mm

Suitable for degree of protection (IP)
IP40

Anti-bacterial treatment
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

44. USB-IF mark

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

8007352704145

1 NR

6x5.4x5.2 [cm]

77.2 [g]

8007352704152

10 NR

28.1x13.1x6 [cm]

847.6 [g]

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
