C+C-USB supply unit 15W 3A 5V 2M grey - 19295.CC

Pdf

19295.CC
Wiring devices / Traditional wiring devices / ARKÉ / Devices

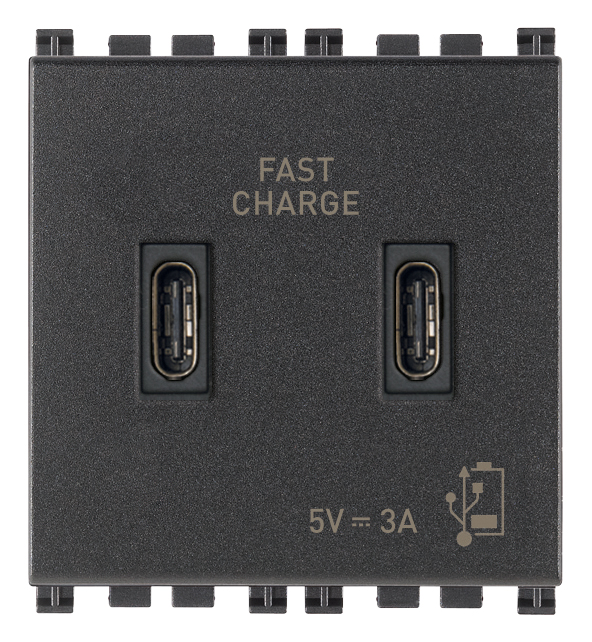

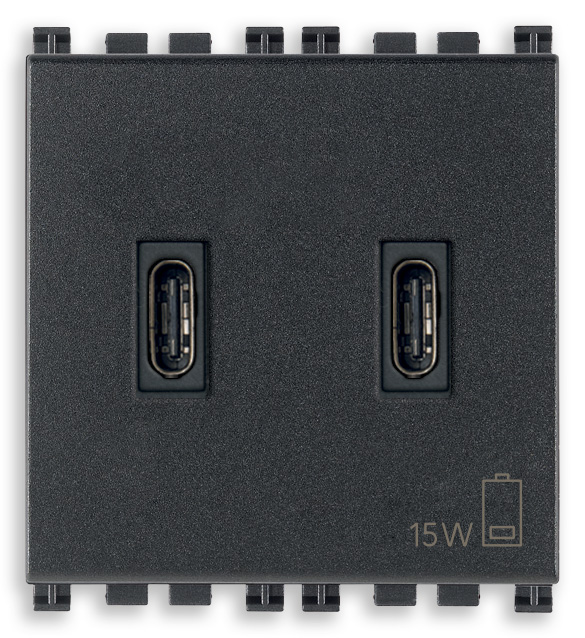

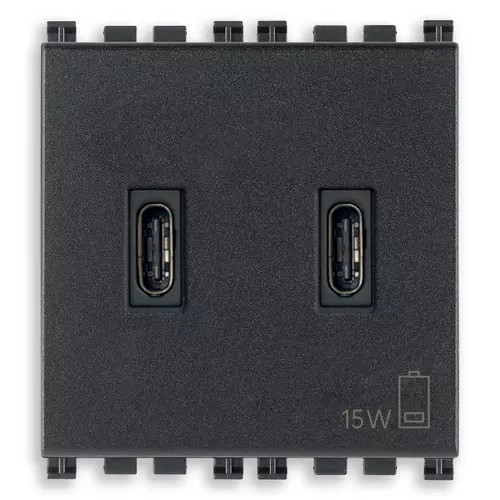

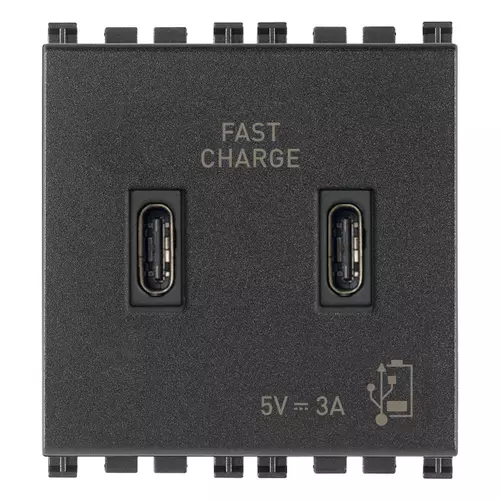

C+C-USB supply unit 15W 3A 5V 2M grey
USB power supply unit 5 V 3 A for electronic devices, 2 USB type C outputs which provide altogether 3 A, optimised to charge a device up to 3A (e.g. a Tablet) or two device simultaneously (e.g. Tablet and smartphone), 120-240 V~ 50/60 Hz power supply, grey - 2 modules

  • The type C USB socket outlet is a standard used in latest-generation devices; since it is reversible, it can be inserted either way round
  • Type C outputs are designed for fast charging the device with currents up to 3 A on a single output

Product Status
3 - Active

Sheets, Manuals, Documentation

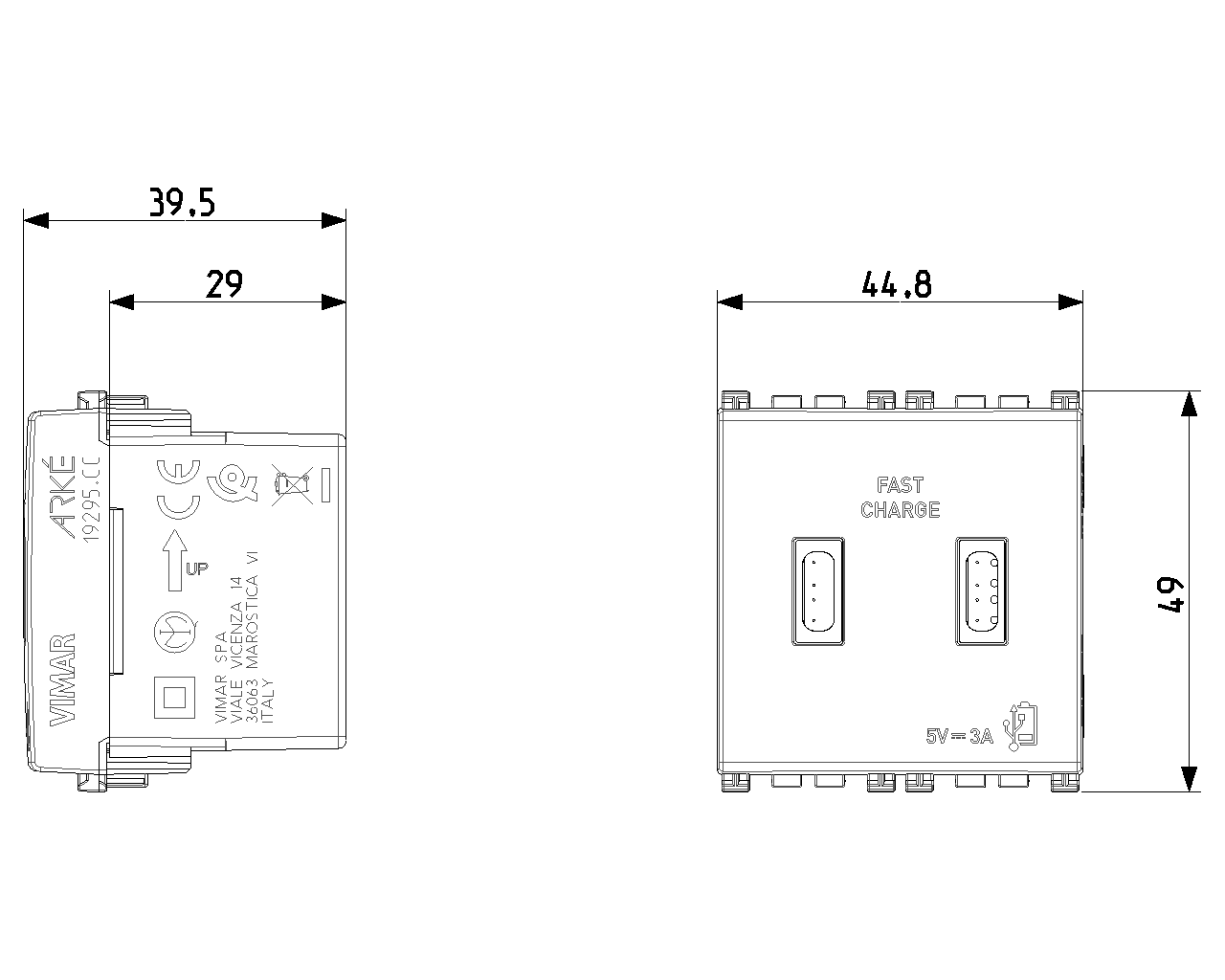

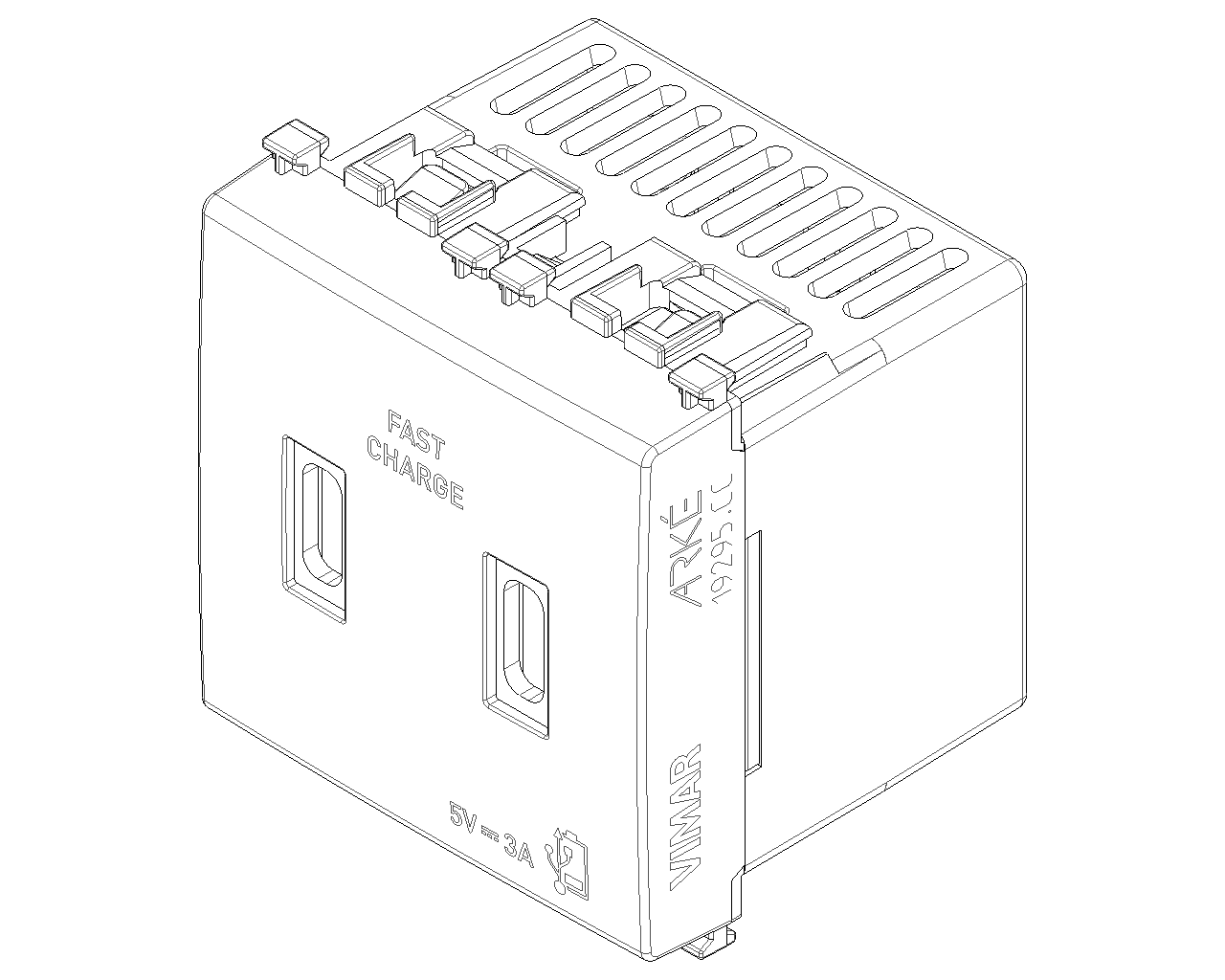

Drawings

Class group
Domestic switching devices
Class
USB power supply
Mounting method
Flush-mounted
Colour
Grey
RAL-number
0

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352646919
1 NR
6x5.4x5.3 [cm]
65.2 [g]
Barcode Qty 10 NR
8007352646926
10 NR
28.1x13.1x6 [cm]
729.6 [g]
Barcode Qty 120 NR
8007352686588
120 NR
38.5x29x30 [cm]
9,409 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
