2P+E 16A P30 outlet+C16 CB grey - 19276

Pdf
Vimar - 19276 - 2P+E 16A P30 outlet+C16 CB grey
Foto gallery #1
Foto gallery #2
Foto gallery #3
Foto gallery #4
Foto gallery #5
Foto gallery #6
Vimar - 19276 - 2P+E 16A P30 outlet+C16 CB grey

19276
Wiring devices / Traditional wiring devices / ARKÉ / Devices

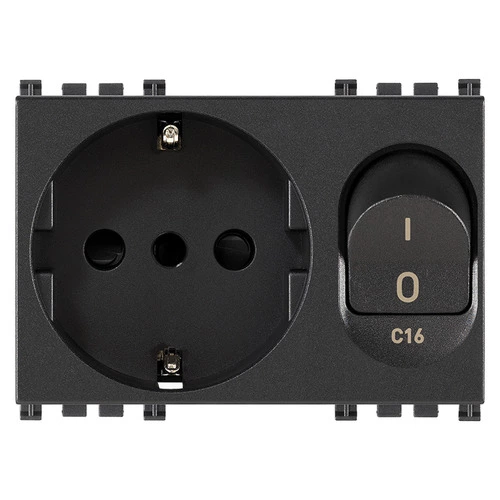

2P+E 16A P30 outlet+C16 CB grey
2P+E 16 A 250 V~ SICURY socket outlet, Italian standard P30 (lateral and central earth contacts), interlocked with 1P+N C 16 circuit breaker, supply voltage 230 V~ 50 Hz, breaking capacity 3000 A, grey - 3 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P30
Number of units
2
Number of modules (module system)
3
Number of socket outlets switchable
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
Yes
Rotated central insert
No
Nominal current
16 A
Nominal voltage
230 V
Frequency
50,00 - 50,01 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
67,30 mm
Device height
49,00 mm
Device depth
56,30 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352436459
1 NR
5.2x5.7x7.6 [cm]
118 [g]
Barcode Qty 5 NR
8007352436466
5 NR
21.4x11.6x6 [cm]
648.6 [g]
