Two 2P+E 16A USA+EU outlets grey - 19249

Pdf
Vimar - 19249 - Two 2P+E 16A USA+EU outlets grey
Vimar - 19249 - Two 2P+E 16A USA+EU outlets grey

19249
Wiring devices / Traditional wiring devices / ARKÉ / Devices

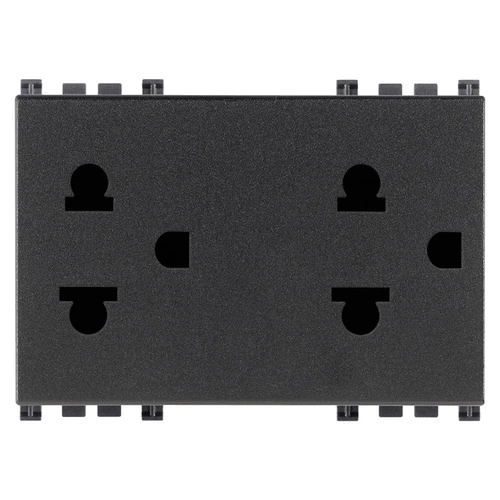

Two 2P+E 16A USA+EU outlets grey
Double 2P+E 16 A 250 V~ socket outlet, polarized Euro-American standard, grey - 3 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
2
Number of modules (module system)
3
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
36,00 mm

00. CE Marking - EU

29. QCERT - Colombia

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352474826
1 NR
5.3x3.9x7.6 [cm]
73.1 [g]
Barcode Qty 20 NR
8007352474833
20 NR
28.1x13.1x11.3 [cm]
1,568 [g]
Barcode Qty 240 NR
8007352718524
240 NR
59.5x38.5x26.5 [cm]
19,536 [g]
