2P+E 16A Universal+USB-C outlet grey - 19210.USB

Pdf
Vimar - 19210.USB - 2P+E 16A Universal+USB-C outlet grey
Foto gallery #1
Foto gallery #2
Vimar - 19210.USB - 2P+E 16A Universal+USB-C outlet grey

19210.USB
Wiring devices / Traditional wiring devices / ARKÉ / Devices

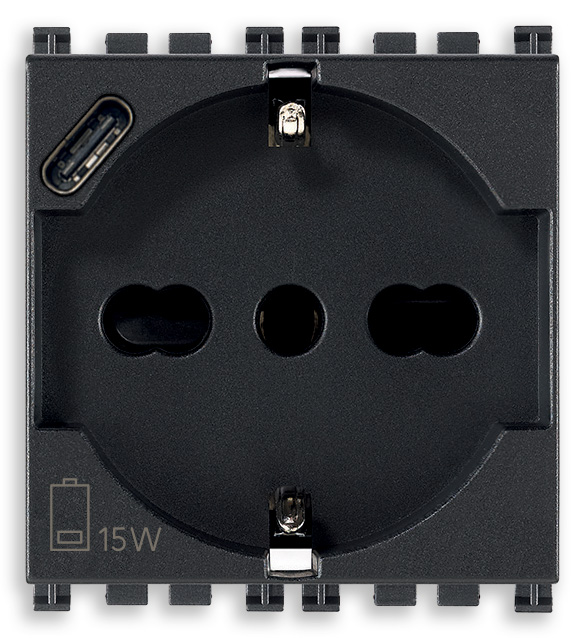

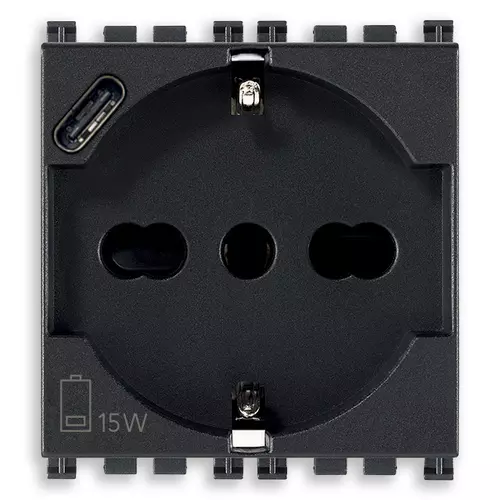

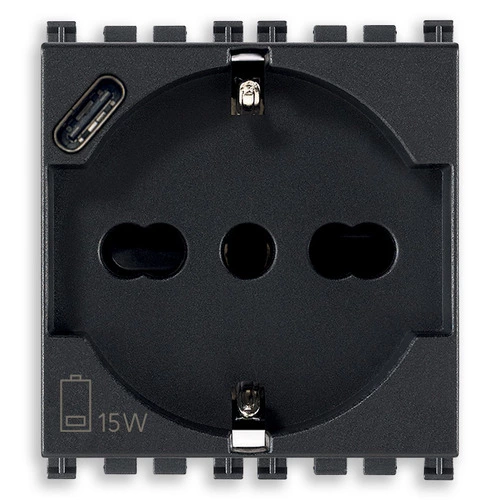

2P+E 16A Universal+USB-C outlet grey

  • Device on 2 modules capable of simultaneously charging 2 devices, thanks to the universal socket outlet and the type C 3A USB socket outlet

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of active contacts (round)
0
Number of active contacts (flat)
0
With signal lamp
No
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
2
Imprint/indication
Other
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
Yes
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
No special power supply
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
With loop through function
Yes
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20

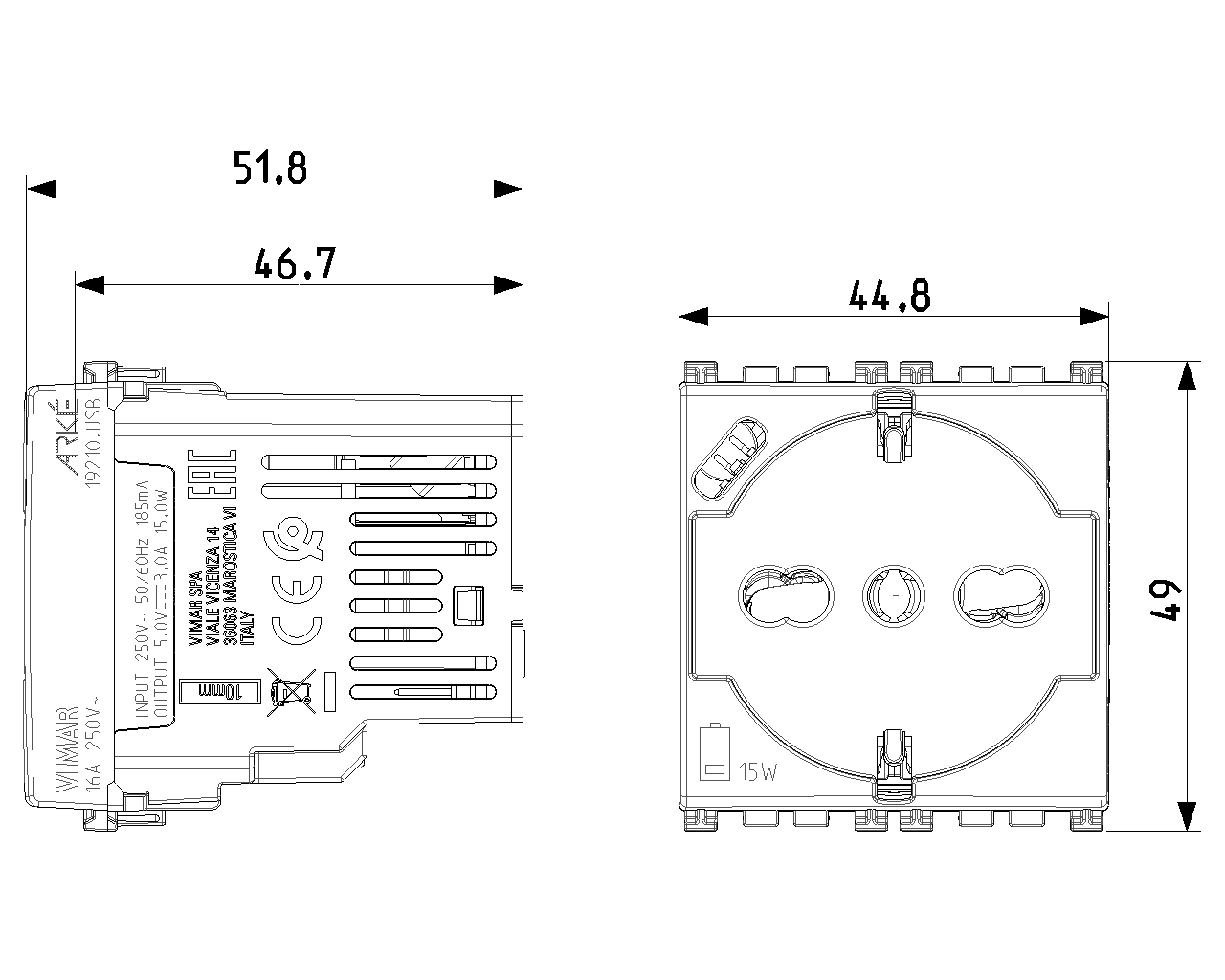

Device width
44,80 mm
Device height
49,00 mm
Device depth
52,00 mm
Min. depth of built-in installation box
48 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
For heavy conditions according to VDE
No

00. CE Marking - EU

03. CSv-IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352707047
1 NR
6x5.4x5.2 [cm]
83 [g]
Barcode Qty 10 NR
8007352710092
10 NR
28.1x13.1x6 [cm]
903 [g]
Barcode Qty 60 NR
8007352769441
60 NR
37.5x30x13.5 [cm]
5,780 [g]
Barcode Qty 120 NR
8007352710108
120 NR
38.5x29x30 [cm]
11,268 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
