2P+E 16ADE SICURY outlet screwl.+cover g - 19208.FX.C

Pdf
Vimar - 19208.FX.C - 2P+E 16ADE SICURY outlet screwl.+cover g
Vimar - 19208.FX.C - 2P+E 16ADE SICURY outlet screwl.+cover g

19208.FX.C
Wiring devices / Traditional wiring devices / ARKÉ / Devices

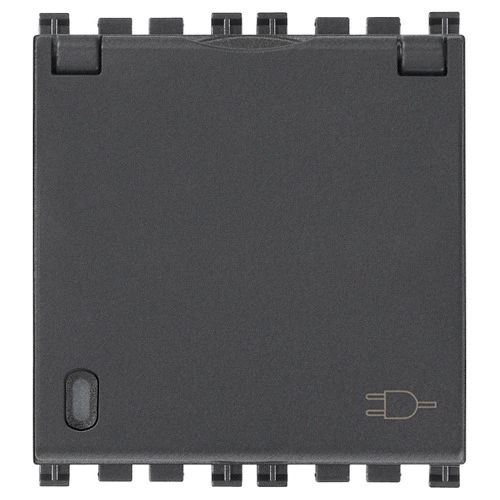

2P+E 16ADE SICURY outlet screwl.+cover g
2P+E 16 A 250 V~ SICURY socket outlet, German standard, with cover, screwless terminals, grey - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Push-in clamp
With hinged lid
Yes
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
47,95 mm

00. CE Marking - EU

09. VDE - Germany

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352576841
1 NR
5x4.7x5.1 [cm]
55 [g]
Barcode Qty 10 NR
8007352576858
10 NR
24.8x10.6x6 [cm]
615.2 [g]
Barcode Qty 120 NR
8007352715493
120 NR
38.5x27x25 [cm]
7,382.4 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
