2P+E 16A German SICURY outlet grey - 19208

Pdf
Vimar - 19208 - 2P+E 16A German SICURY outlet grey
Vimar - 19208 - 2P+E 16A German SICURY outlet grey

19208
Wiring devices / Traditional wiring devices / ARKÉ / Devices

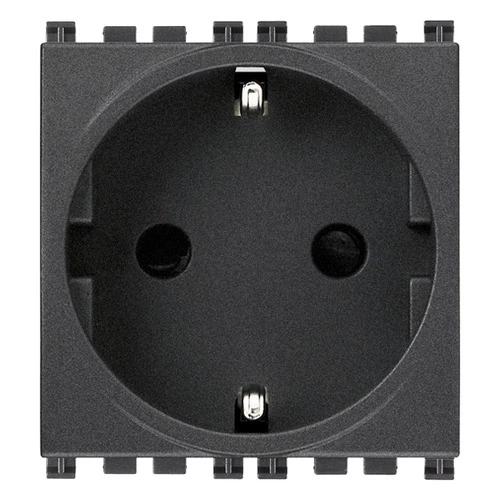

2P+E 16A German SICURY outlet grey
2P+E 16 A 250 V~ SICURY socket outlet, German standard, grey - 2 modules

Product Status
3 - Active

Class group
Domestic switching devices
Class
Socket outlet
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
38,90 mm

00. CE Marking - EU

09. VDE - Germany

12. AENOR - Spain

13. SNI-MGI - Indonesia

14. TSE - Turkey

37. Marking - Morocco

50. Product Environm. Profile

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352471009
1 NR
5.1x4.3x5.3 [cm]
47 [g]
Barcode Qty 20 NR
8007352471016
20 NR
27.4x11.5x9.2 [cm]
1,031 [g]
Barcode Qty 240 NR
8007352635043
240 NR
38x28.5x35.5 [cm]
12,912 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
