19195
System infrastructure / Netsafe structured wiring / ARKÉ / Devices

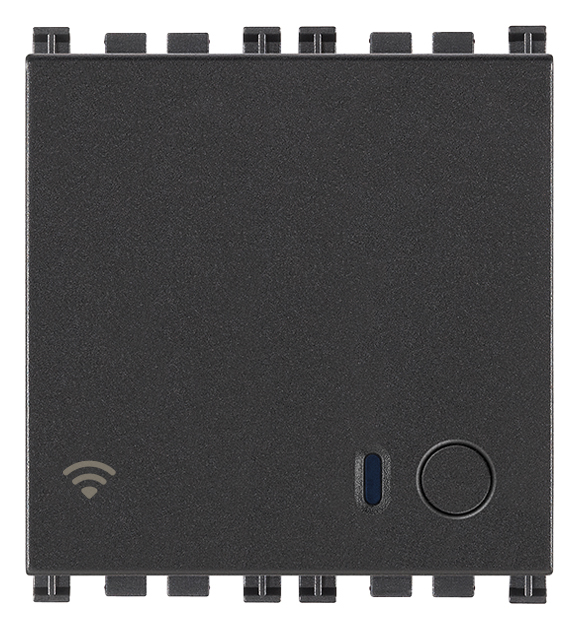

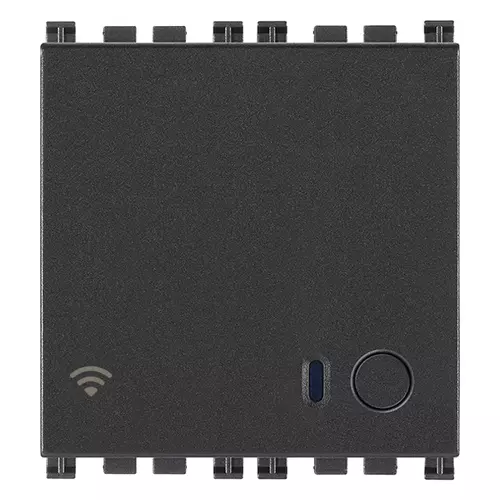

Wi-Fi access point 230V 2M grey
Wi-Fi 72,2 Mb/s Access Point with 2 10-100 Mb/s LAN ports, input for remote Wi-Fi radio on/off push button, supply voltage 230 V~ 50/60 Hz, grey - 2 modules
Product Status
3 - Active
Sheets, Manuals, Documentation
- Light Multilanguage instructions sheet (1216 kb)
- Full Multilanguage instructions sheet (1437 kb)
- Manuale installatore (1968 kb)
- Manuel installateur (1586 kb)
- Manual del instalador (1587 kb)
- Installer manual (1862 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (1683 kb)
- Installationsanleitung (1587 kb)
Product Software
Drawings
Class group
Data and telecommunication
Data and telecommunication
Class
WLAN access point
WLAN access point
Max. data transmission rate
54
54
Frequency band
2.4 GHz
2.4 GHz
Radio protocol
IEEE 802.11 b/g/n
IEEE 802.11 b/g/n
Ethernet
Yes
Yes
Number of ports 10/100 Mbps LAN
2
2
Number of ports 10/100/1000 Mbps LAN
0
0
Firewall
No
No
Connection for external antenna
No
No
Bridge function
Yes
Yes
Repeater function
No
No
Power over Ethernet
No
No
Colour
Other
Other
Width
44,80 mm
44,80 mm
Height
4.900,00 mm
4.900,00 mm
Depth
51,90 mm
51,90 mm
Degree of protection (IP)
IP40
IP40
Built-in
No
No
Suitable for DIN rail (top hat rail) mounting
No
No
Pole fastening
No
No
Flush-mounted installation
Yes
Yes
Suitable for wall mounting
Yes
Yes
Socket outlet adapter
No
No
Minimum order quantity: 1 NR
Barcode
8007352590076
1 NR
5.2x5.7x7.6 [cm]
84 [g]
8007352602359
5 NR
21.4x11.6x6 [cm]
479.8 [g]
| Question: | Can the module be installed as a pure Wi-Fi repeater only with phase and neutral without any wired Ethernet connection? |
|---|---|
| Answer: | In ˝Wi-Fi Extender” mode, the product in question only needs a power supply and not an Ethernet connection in order to operate. |
