Dimmer 120V 30-500W/30-300VA grey - 19147

Pdf
Vimar - 19147 - Dimmer 120V 30-500W/30-300VA grey
Vimar - 19147 - Dimmer 120V 30-500W/30-300VA grey

19147
Wiring devices / Traditional wiring devices / ARKÉ / Devices

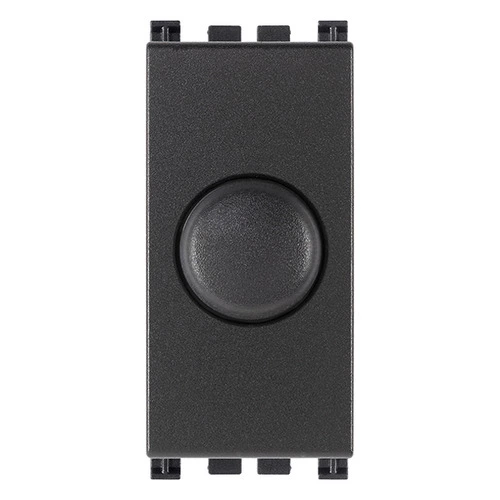

Dimmer 120V 30-500W/30-300VA grey
Dimmer 120 V~ 50-60 Hz for: 30-500 W incandescent lamps, 30-300 VA ferromagnetic transfomers, control and regulation with rotary potentiometer, visible in darkness, grey

Product Status
3 - Active

Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Inductive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 120,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
120,00 - 120,01 V
Device width
22,30 mm
Device height
49,00 mm
Device depth
60,50 mm

00. CE Marking - EU

19. NOM - Mexico

29. QCERT - Colombia

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352471542
1 NR
6x2.8x5.3 [cm]
46.6 [g]
Barcode Qty 20 NR
8007352471559
20 NR
28.1x13.1x6 [cm]
1,009 [g]
