Axial 1P NO 10A push button 2M grey - 19108.2

Pdf

Vimar - 19108.2 - Axial 1P NO 10A push button 2M grey

19108.2
Wiring devices / Traditional wiring devices / ARKÉ / Devices

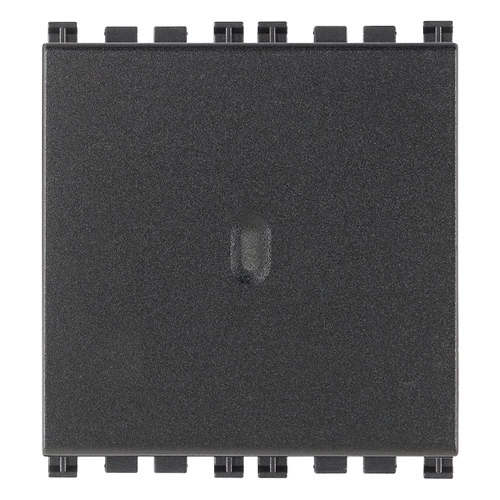

Axial 1P NO 10A push button 2M grey
Axial 1P NO 10 A 250 V~ push button, lightable, replaceable button, grey - 2 modules

Product Status
3 - Active

You may also be interested in

00938.A - LED unit 110-250V 0,3Waxialcontrol amber

00938.G - LED unit 110-250V 0,3Waxialcontrol green

00938.R - LED unit 110-250V 0,3Waxialcontrol red

00938.B - LED unit 110-250V 0,3Waxialcontrol blue

00938.W - LED unit 110-250V 0,3Waxialcontrol white

Video

Arké lives in your time

Drawings

view encumbered art. 19108.2

PNG DXF

rear view art. 19108.2

PNG DXF

3D view art. 19108.2

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
200

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
44,80 mm

Device height
49,00 mm

Device depth
44,70 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

8007352458987

1 NR

5.1x4.8x5.3 [cm]

41.4 [g]

8007352458994

10 NR

24.7x11x6.2 [cm]

477.8 [g]
