Axial 1P 10AX 1-way switch 2M white - 19100.2.B

Pdf
Vimar - 19100.2.B - Axial 1P 10AX 1-way switch 2M white
Vimar - 19100.2.B - Axial 1P 10AX 1-way switch 2M white

19100.2.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

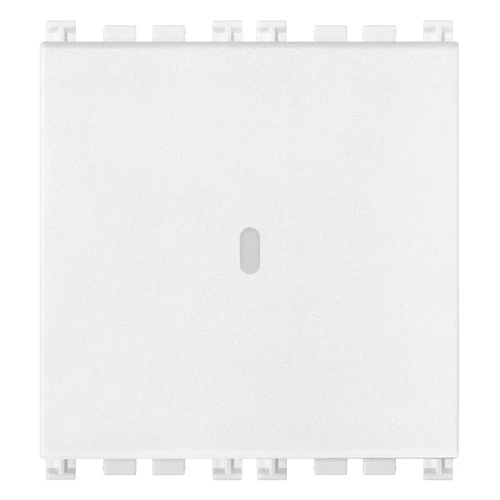

Axial 1P 10AX 1-way switch 2M white

Product Status
3 - Active

Drawings

view encumbered art. 19100.2.B
PNG DXF
rear view art. 19100.2.B
PNG DXF
3D view art. 19100.2.B
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
10,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

28. NSW - Australia

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352685178
1 NR
5x4.7x5.1 [cm]
42.1 [g]
Barcode Qty 10 NR
8007352685185
10 NR
24.8x10.6x6 [cm]
477.9 [g]
