Antibacterial 1P 16AX reversing switch w - 19013.AB.B

Pdf
Vimar - 19013.AB.B - Antibacterial 1P 16AX reversing switch w
Vimar - 19013.AB.B - Antibacterial 1P 16AX reversing switch w

19013.AB.B
Wiring devices / Traditional wiring devices / ARKÉ / Devices

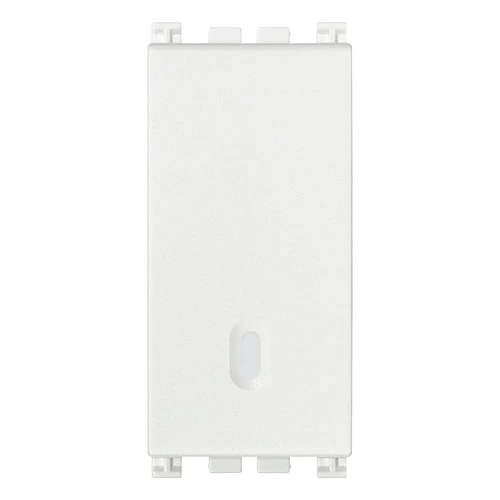

Antibacterial 1P 16AX reversing switch w
1P 16 AX 250 V~ reversing switch, lightable, replaceable button, antibacterial material, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 19013.AB.B
PNG DXF
rear view art. 19013.AB.B
PNG DXF
3D view art. 19013.AB.B
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
36,85 mm
Built-in depth
25,00 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352651920
1 NR
4.1x2.8x5.3 [cm]
36.54 [g]
Barcode Qty 50 NR
8007352651937
50 NR
21.6x11.6x14.3 [cm]
1,775 [g]
Barcode Qty 500 NR
8007352653696
500 NR
57.5x22.5x30 [cm]
18,270 [g]
