1P 10AX 2M 1-way switch screwless grey - 19000.FX.2

Pdf
Vimar - 19000.FX.2 - 1P 10AX 2M 1-way switch screwless grey
Vimar - 19000.FX.2 - 1P 10AX 2M 1-way switch screwless grey

19000.FX.2
Wiring devices / Traditional wiring devices / ARKÉ / Devices

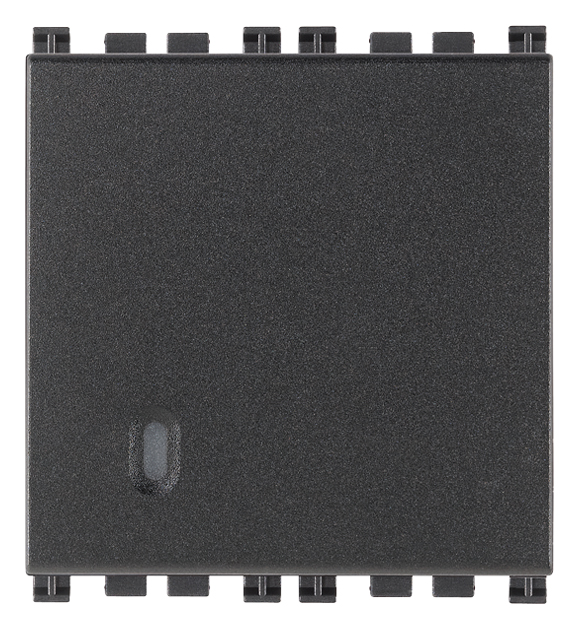

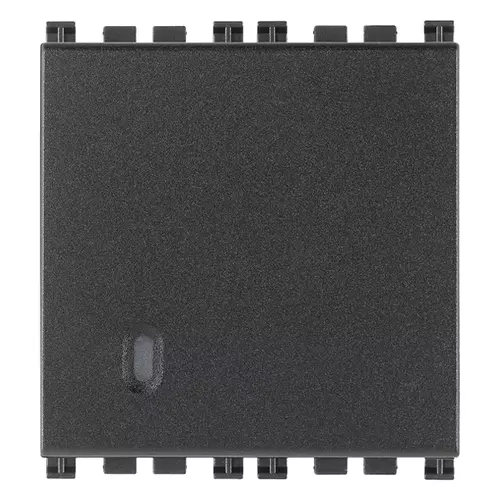

1P 10AX 2M 1-way switch screwless grey
1P 10 AX 250 V~ 1-way switch, screwless terminals, lighTable, replaceable button, grey - 2 modules. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 19000.FX.2
PNG DXF
rear view art. 19000.FX.2
PNG DXF
3D view art. 19000.FX.2
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Push-in clamp
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
38,30 mm
Built-in depth
26,90 mm

00. CE Marking - EU

04. NF - France

09. VDE - Germany

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352629738
1 NR
5.1x4.3x5.3 [cm]
33.1 [g]
Barcode Qty 20 NR
8007352629745
20 NR
26.9x11.6x9 [cm]
743 [g]
