TV-RD-SAT through-line.out.2outs grey - 17067.10

Pdf
Vimar - 17067.10 - TV-RD-SAT through-line.out.2outs grey
Vimar - 17067.10 - TV-RD-SAT through-line.out.2outs grey

17067.10
Wiring devices / Traditional wiring devices / IDEA / Devices

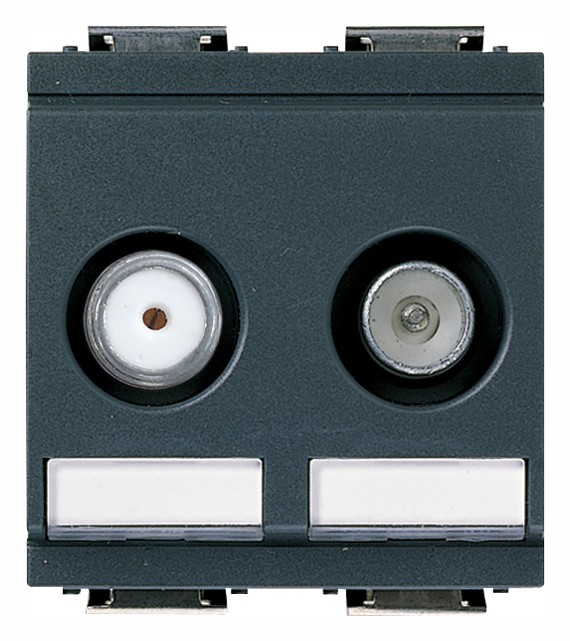

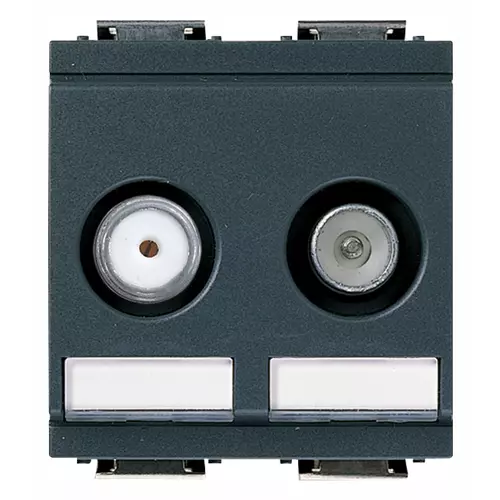

TV-RD-SAT through-line.out.2outs grey
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, demix, 2 outputs with male (TV-RD) and female F-type (SAT) connectors, connection attenuation 10 dB, grey - 2 reduced modules

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

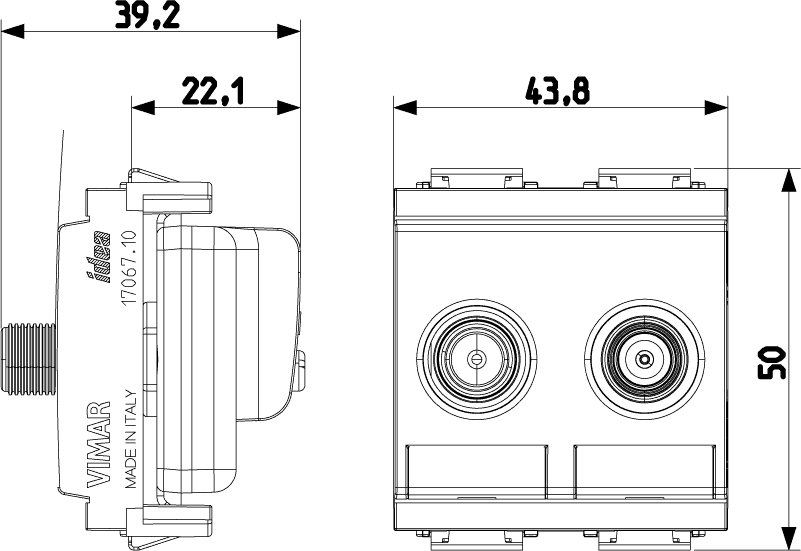

view encumbered art. 17067.10
PNG DXF

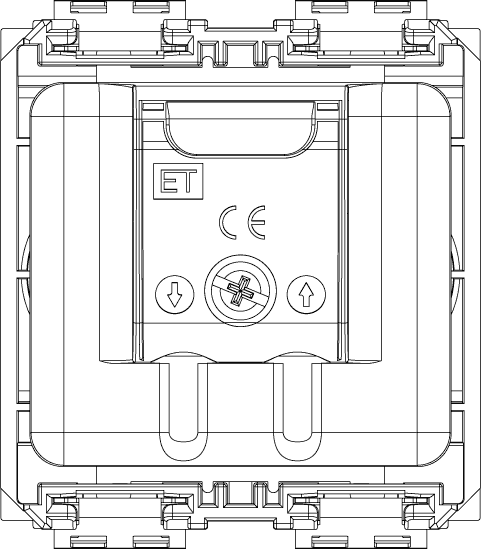

rear view art. 17067.10
PNG DXF

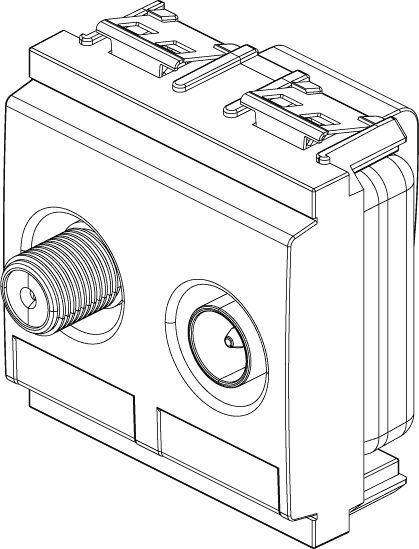

3D view art. 17067.10
PNG DXF
Class group
Antenna and satellite technique
Class
Antenna socket box
Model
TWIN end socket
Cover
None
Tap loss at 860 MHz
11,20 dB
Tap loss at 2150 MHz
12,00 dB
Number of outlets
2
Through loss at 860 MHz
2,00 dB
Through loss at 2150 MHz
2,80 dB
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
Grey
RAL-number (similar)
7015
Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352400900
1 NR
5.1x4.3x5.3 [cm]
83.7 [g]
Barcode Qty 10 NR
8007352401068
10 NR
26.9x11.6x4.9 [cm]
889.8 [g]
