TV-RD-SATthrough-line male outlet 10dB g - 17066.10

17066.10
Wiring devices / Traditional wiring devices / IDEA / Devices

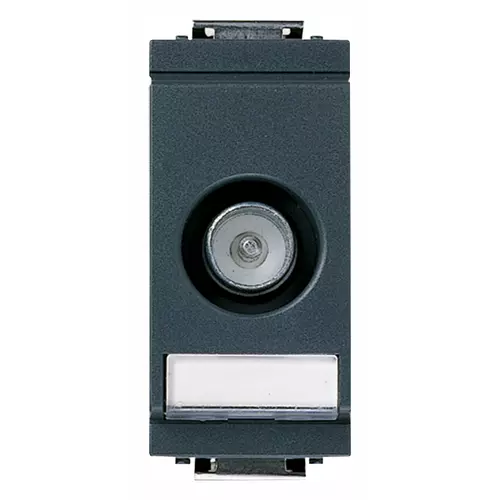

TV-RD-SATthrough-line male outlet 10dB g
Coaxial TV-RD-SAT 5-2400 MHz socket outlet, through-line, with IEC 60169-2 male connector, connection attenuation 10 dB, grey - reduced module

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

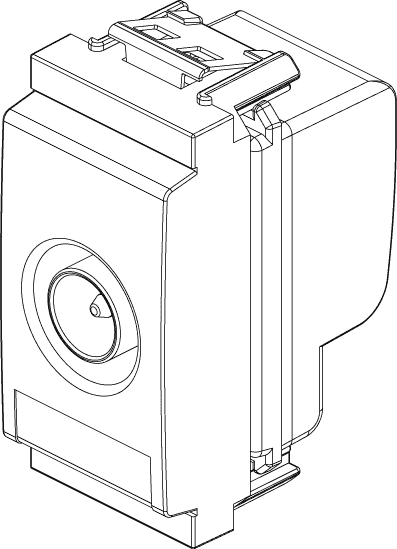

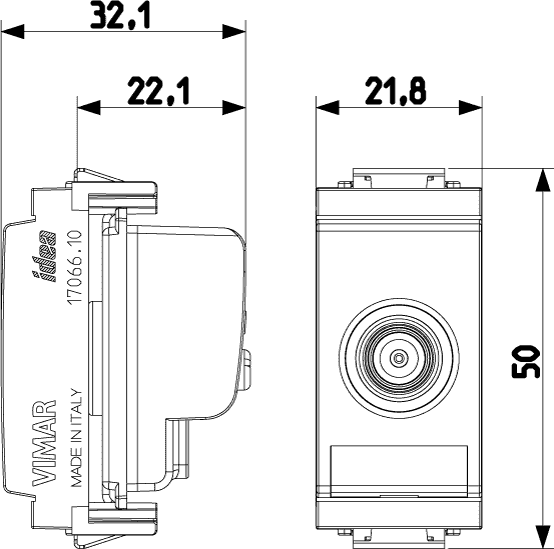

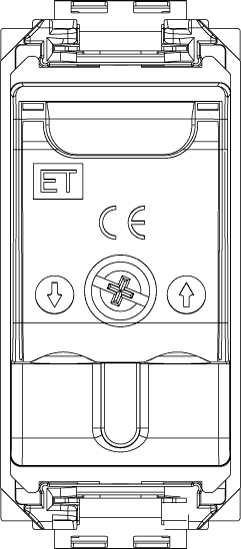

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
Loop-through socket

Cover
None

Tap loss at 860 MHz
10,60 dB

Tap loss at 2150 MHz
9,90 dB

Number of outlets
1

Through loss at 860 MHz
2,20 dB

Through loss at 2150 MHz
3,40 dB

Suitable for remote power supply
No

Type of fastening
Snap mounting (engagement)

Colour
Grey

RAL-number (similar)
7015

Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

---

Barcode

8007352013858

1 NR

4.1x2.8x5.3 [cm]

51.8 [g]

8007352013865

20 NR

21.4x11.6x6 [cm]

1,093 [g]
