2P 15A USA+EU ø4,8mm outlet grey - 17044

Pdf
Vimar - 17044 - 2P 15A USA+EU ø4,8mm outlet grey
Vimar - 17044 - 2P 15A USA+EU ø4,8mm outlet grey

17044
Wiring devices / Traditional wiring devices / IDEA / Devices

2P 15A USA+EU ø4,8mm outlet grey
2P 15 A 250 V~ socket outlet, Euro-American standard (for plugs with parallel and in-line flat pins and ø 4,8 mm pins), grey - reduced module

Product Status
3 - Active

Drawings

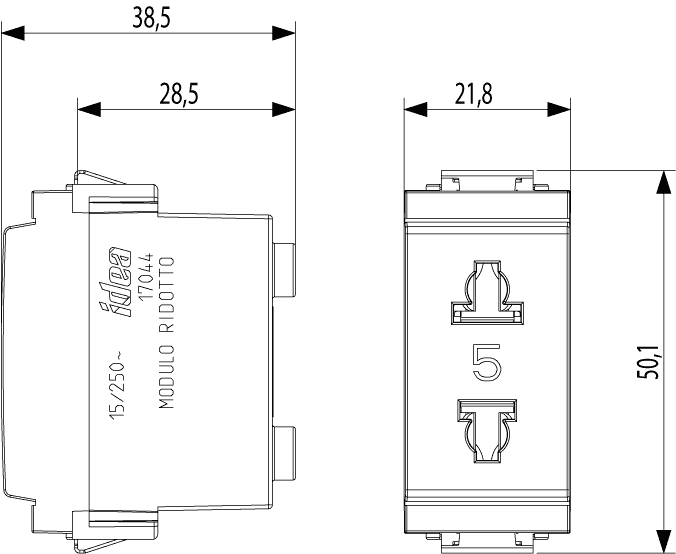

view encumbered art. 17044
PNG DXF

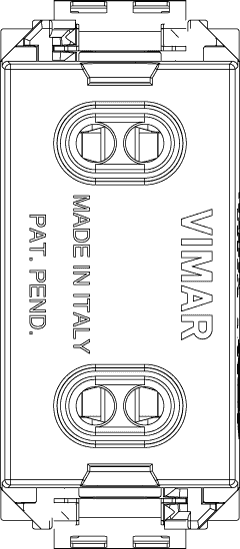

rear view art. 17044
PNG DXF

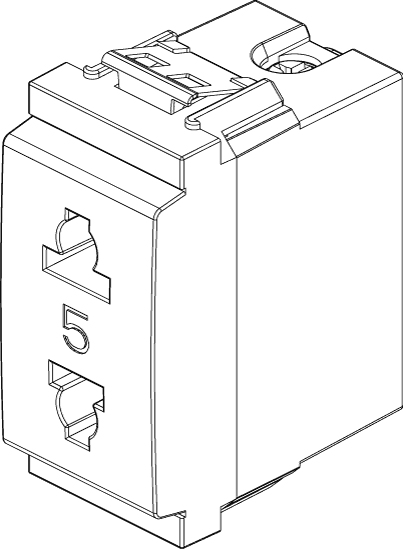

3D view art. 17044
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
43,80 mm
Device height
50,10 mm
Device depth
36,50 mm

37. Marking - Morocco

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352081161
1 NR
4.1x2.8x5.3 [cm]
27.27 [g]
Barcode Qty 20 NR
8007352081178
20 NR
21.4x11.6x6 [cm]
608.07 [g]
