2P+E 16A German SICURY outlet grey - 17038

Pdf
Vimar - 17038 - 2P+E 16A German SICURY outlet grey
Vimar - 17038 - 2P+E 16A German SICURY outlet grey

17038
Wiring devices / Traditional wiring devices / IDEA / Devices

2P+E 16A German SICURY outlet grey
2P+E 16 A 250 V~ SICURY socket outlet, German standard, grey - 2 reduced modules

Product Status
3 - Active

Drawings

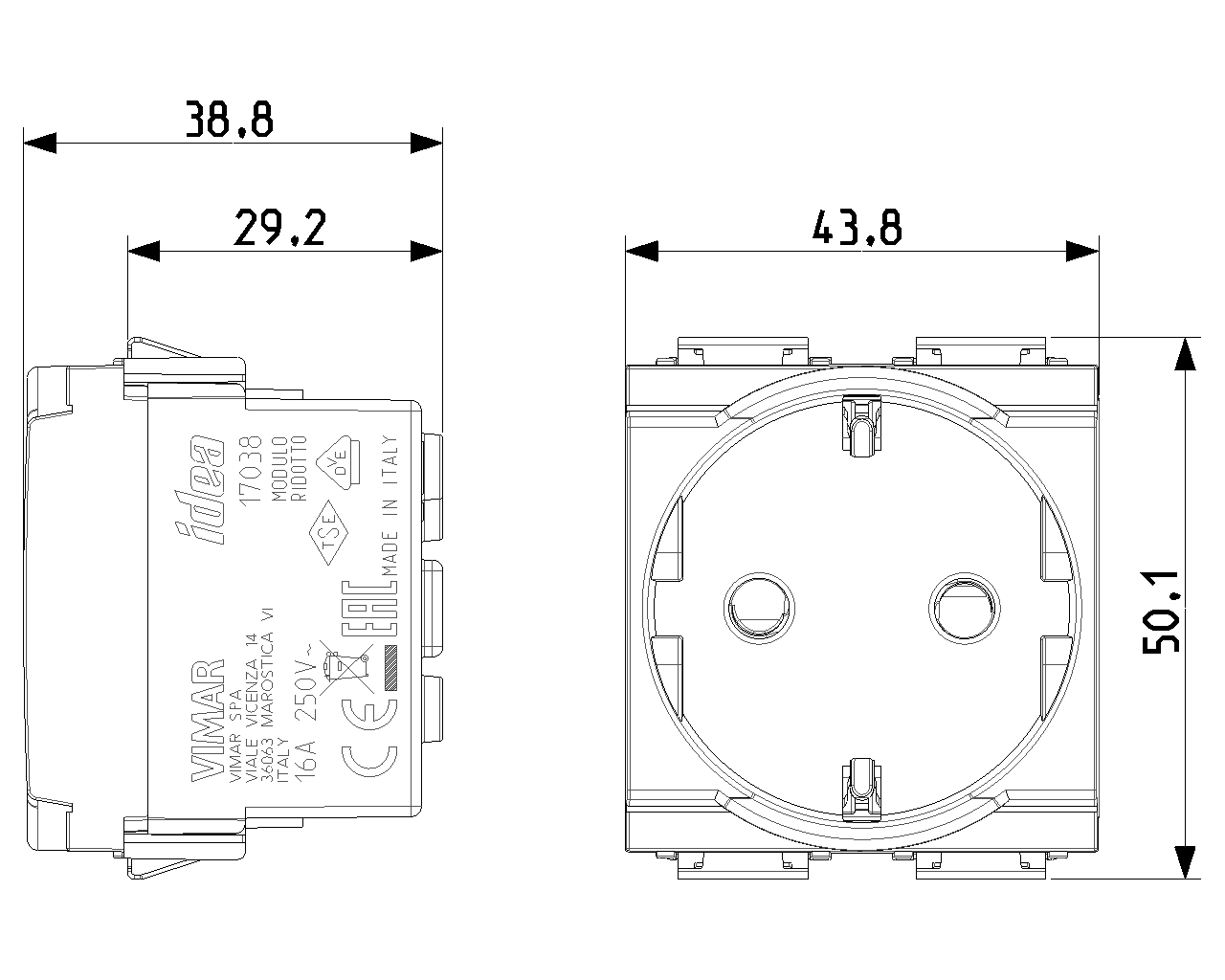

view encumbered art. 17038
PNG DXF

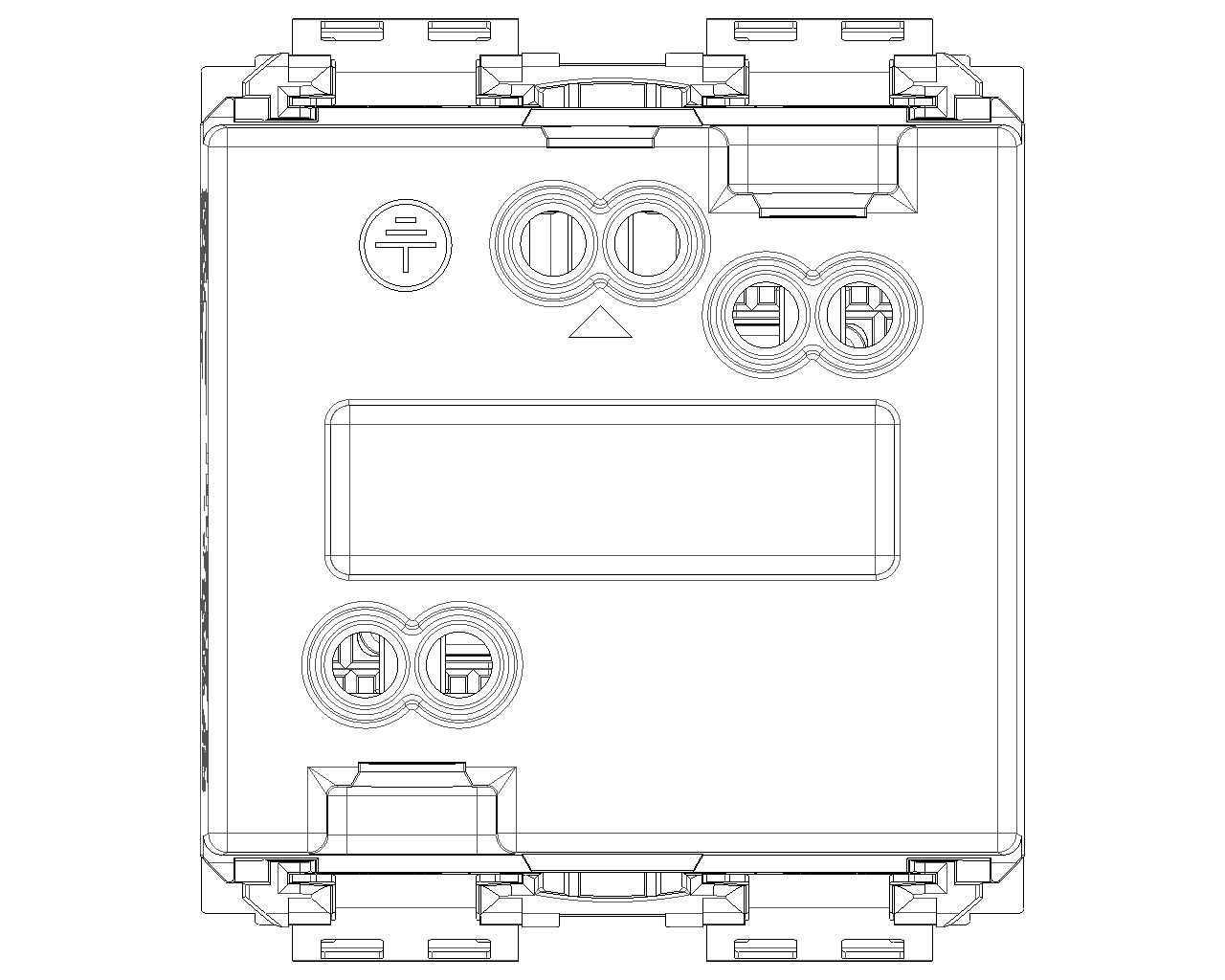

rear view art. 17038
PNG DXF

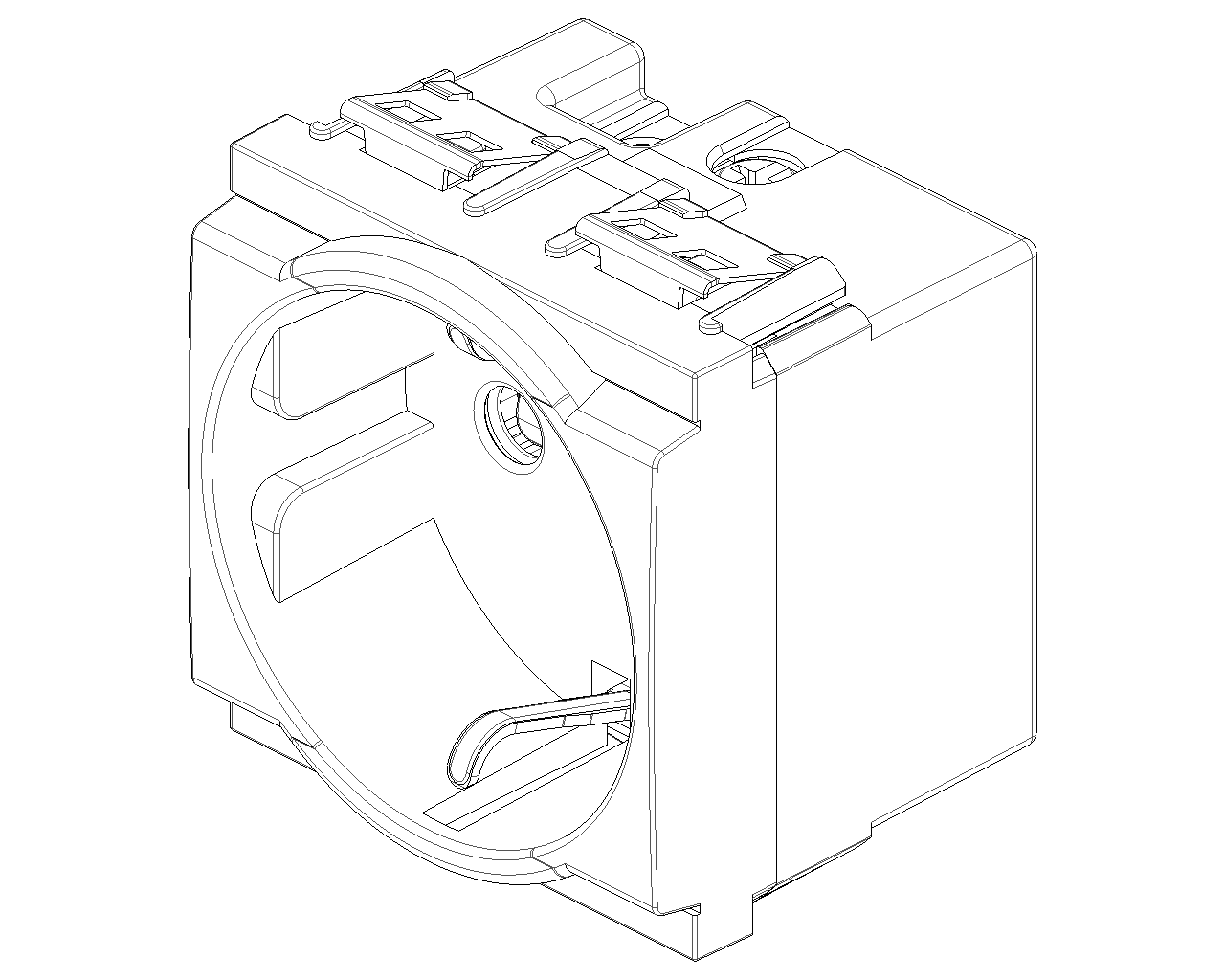

3D view art. 17038
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
43,80 mm
Device height
50,10 mm
Device depth
36,50 mm

00. CE Marking - EU

09. VDE - Germany

14. TSE - Turkey

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352079496
1 NR
5.1x4.3x5.3 [cm]
48.53 [g]
Barcode Qty 20 NR
8007352079502
20 NR
26.9x11.6x9 [cm]
1,050.83 [g]
Barcode Qty 240 NR
8007352335677
240 NR
38x28.5x35.5 [cm]
13,150 [g]
