Table mounting box 6M grey - 16806

Pdf

16806
System infrastructure / Enclosures and control units / Connector block boxes / Desktop

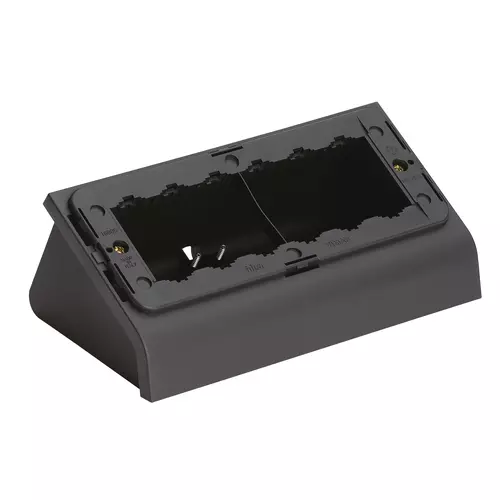

Table mounting box 6M grey
6-module table mounting box with cord-grip, for 6-module installation, grey. Suitable only for Classica cover plate

Product Status
3 - Active

Drawings

Class group
Domestic switching devices
Class
Surface mounted box for flush-mounted switching equipment
Assembly arrangement
Other
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
6
Number of units
6
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
With cover frame
No
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20
Device width
121,60 mm
Device height
110,80 mm
Device depth
77,40 mm
Minimum order quantity: 2 NR

Barcode

Barcode Qty 1 NR
8007352077171
1 NR
19.5x11x7.8 [cm]
263.73 [g]
Barcode Qty 2 NR
8007352077188
2 NR
24.4x13.9x11.9 [cm]
630 [g]
