Classica plate 6M metal chrome - 16736.36

Pdf
Vimar - 16736.36 - Classica plate 6M metal chrome
Vimar - 16736.36 - Classica plate 6M metal chrome

16736.36
Wiring devices / Traditional wiring devices / IDEA / Cover plates

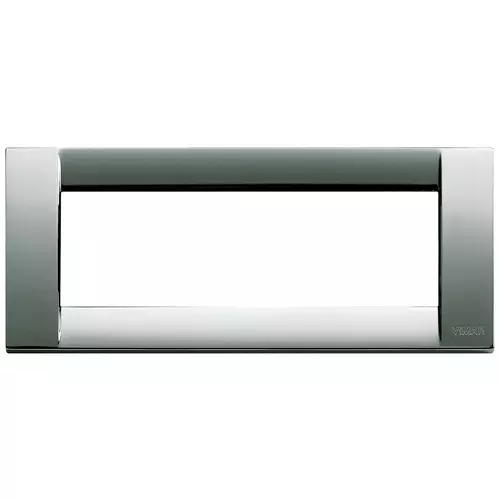

Classica plate 6M metal chrome
6-module Classica cover plate, die-cast metal, chrome

Product Status
3 - Active

You may also be interested in

16716
16716 - Frame 6M +screws

Drawings

view encumbered art. 16736.36
PNG DXF
rear view art. 16736.36
PNG DXF
3D view art. 16736.36
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Metallic
Surface finishing
Glossy
Colour
Chrome
RAL-number (similar)
9007
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
120,00 mm
Height
82,00 mm
Depth
8,90 mm
Built-in width
120,00 mm
Built-in height
82,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352108431
1 NR
20.7x8.5x1.1 [cm]
189.6 [g]
Barcode Qty 5 NR
8007352108448
5 NR
21.4x6.6x9.3 [cm]
996.33 [g]
