Frame 1M for DIN rail - 16726

Pdf
Vimar - 16726 - Frame 1M for DIN rail
Vimar - 16726 - Frame 1M for DIN rail

16726
System infrastructure / Enclosures and control units / Switchboards / Shared accessories

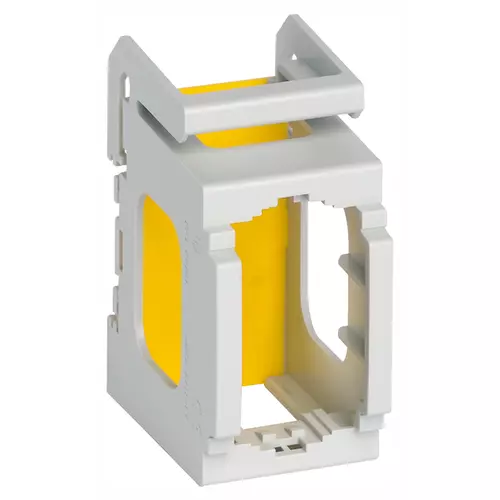

Frame 1M for DIN rail
1-module frame for DIN (60715 TH35) rail installation, occupies 2 17,5 mm modules, RAL 7035 grey

Product Status
3 - Active

Drawings

view encumbered art. 16726
PNG DXF
rear view art. 16726
PNG DXF

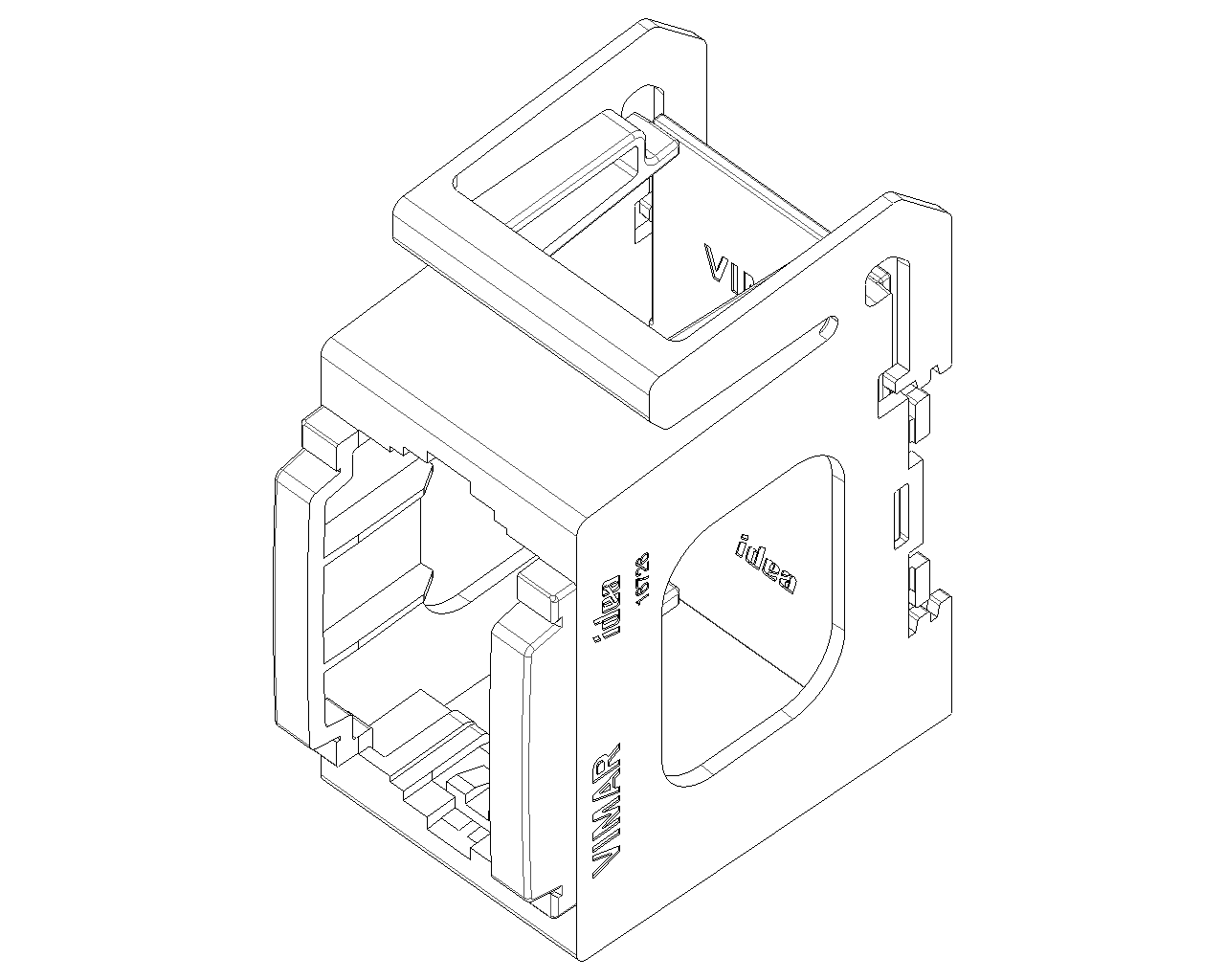

3D view art. 16726
PNG DXF
Class group
Domestic switching devices
Class
Holder for modular domestic switching devices
Model
Flush-mounted
Mounting method
Snap mounting
Mounting method of the module inserts
Back side
Mounting direction
Horizontal and vertical
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With built-in installation box
No
With screws
No
Suitable for mounting in round junction box 60 mm
No
Flush-mounted installation
No
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for mounting on DIN-rail 35 mm
Yes
Material
Plastic
Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352133389
1 NR
7.6x3.5x5.9 [cm]
20.8 [g]
Barcode Qty 20 NR
8007352133396
20 NR
28.4x18.4x9.5 [cm]
528.6 [g]
Barcode Qty 240 NR
8007352642041
240 NR
59x38.5x30 [cm]
7,086 [g]
