Frame 2M grooved front grey - 16722

16722
Wiring devices / Traditional wiring devices / IDEA / Mounting frames

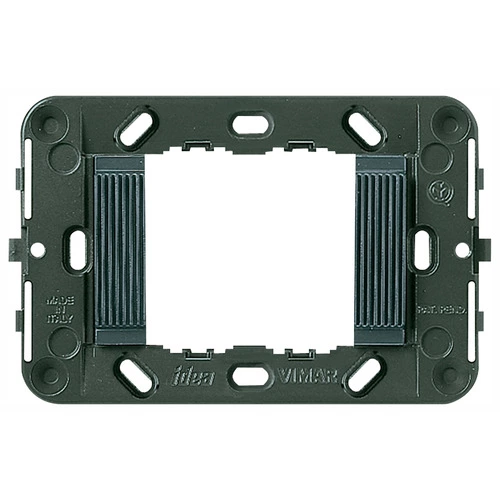

Frame 2M grooved front grey
2-module mounting frame, grooved front, without screws, for 3-module and 60 mm fixing centres or 56x56 mm mounting boxes, grey

Product Status
3 - Active

You may also be interested in

16713.C - Protective cover for 16713

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
2

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
No

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 20 NR

---

Barcode

8007352047334

1 NR

12.2x3x2 [cm]

27.11 [g]

8007352047341

20 NR

24.4x13.9x11.9 [cm]

646.2 [g]
