Frame 18M +screws - 16719

16719
Wiring devices / Traditional wiring devices / IDEA / Mounting frames

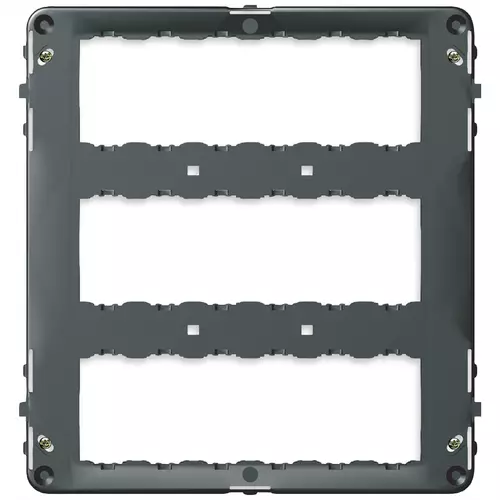

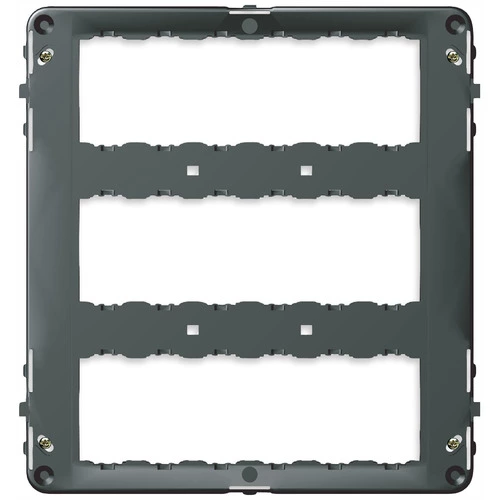

Frame 18M +screws
18 (6+6+6)-module mounting frame, with screws, for flush mounting box V71321 or surface mounting box 09921, grey

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

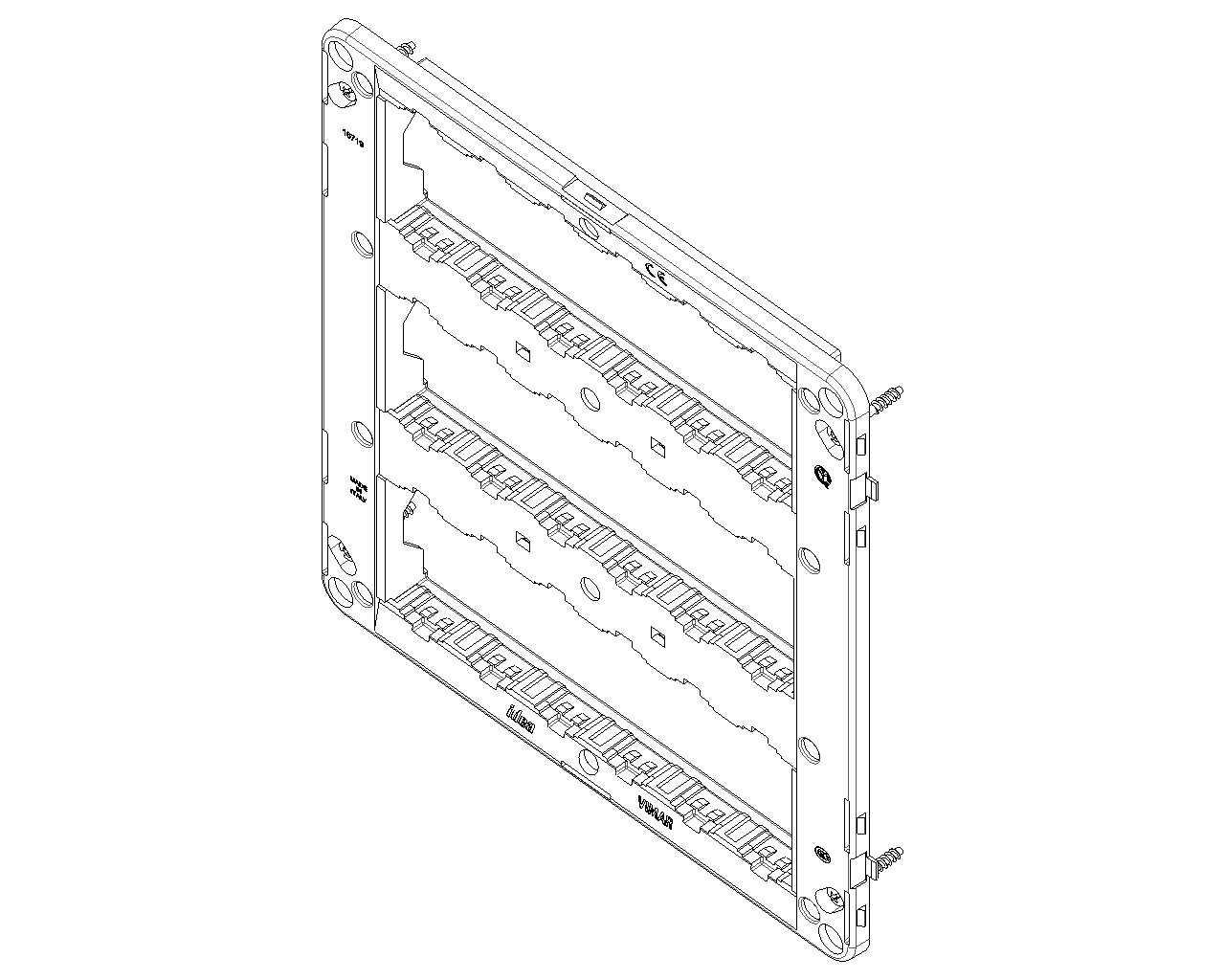

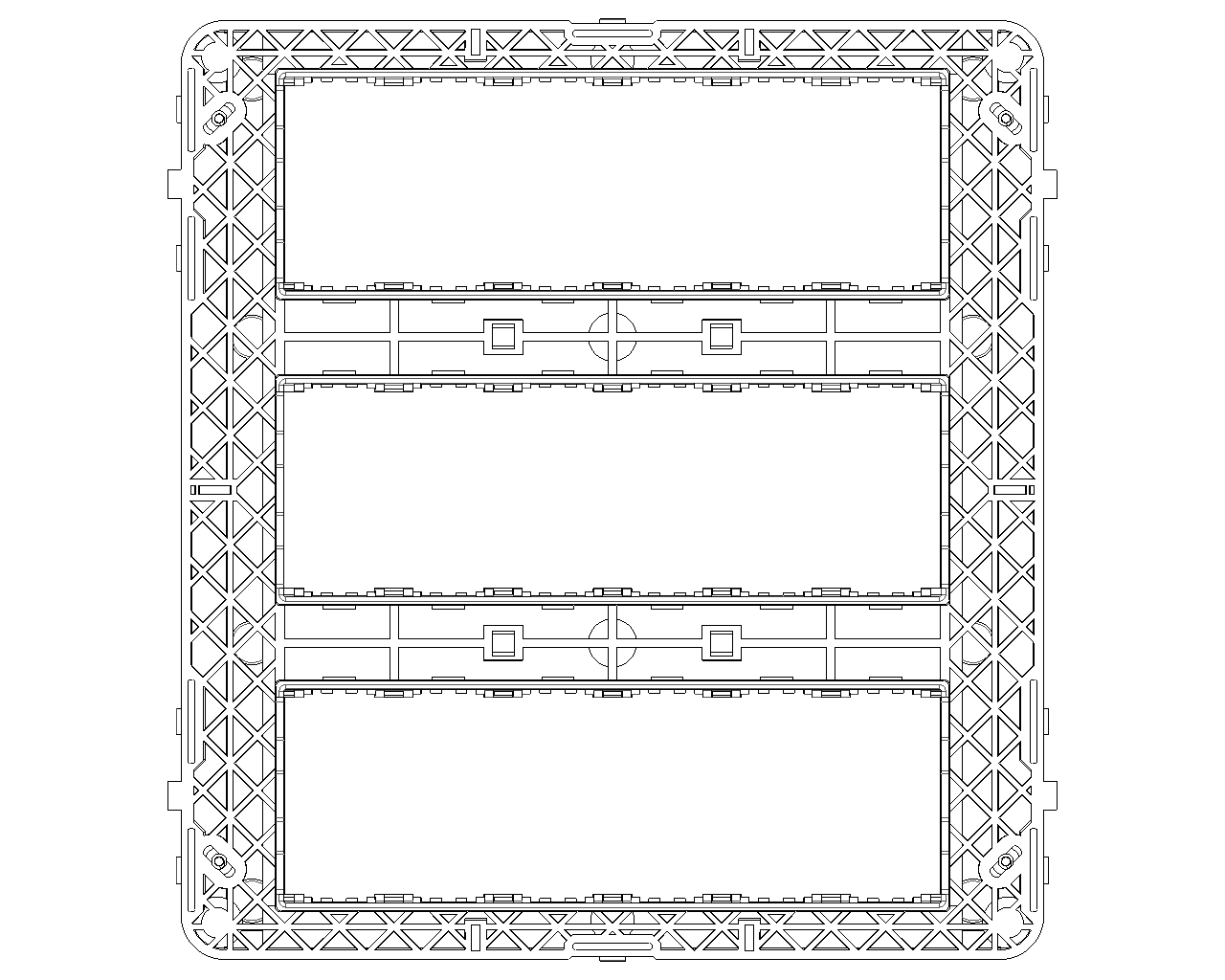

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
6

Number of modules vertical (module system)
3

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352117013

1 NR

18x20x2.1 [cm]

119.6 [g]

8007352117020

10 NR

28.4x24.4x16.4 [cm]

1,411.47 [g]
