Frame 12M +screws - 16718

16718
Wiring devices / Traditional wiring devices / IDEA / Mounting frames

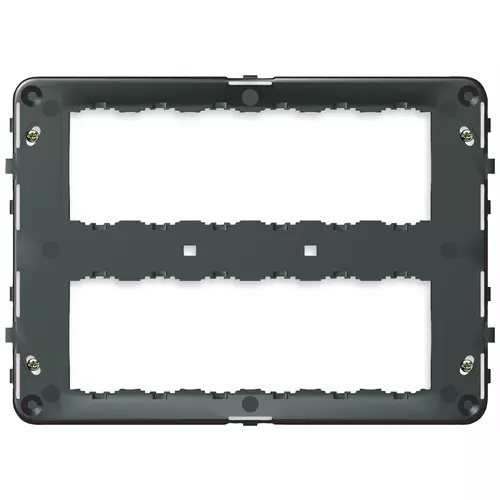

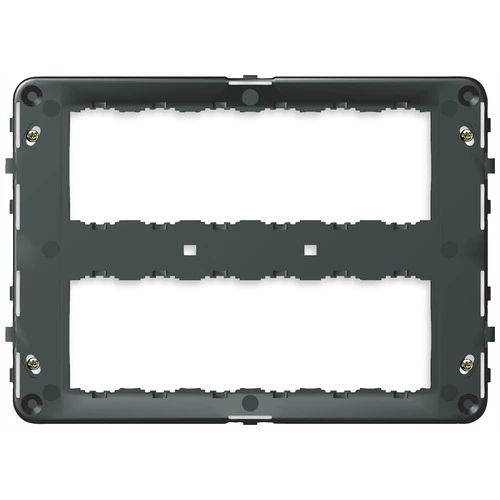

Frame 12M +screws
12 (6+6)-module mounting frame, with screws, for V71320, V71620 and V71720 flush or 09920 surface mounting boxes, grey

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• ETIM technical data
• Certifications
• Supply data

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Back side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
6

Number of modules vertical (module system)
2

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352116993

1 NR

18x12.5x2.1 [cm]

84.07 [g]

8007352117006

10 NR

28.4x24.4x14.9 [cm]

1,031.47 [g]
