SET/RESET device grey - 16643

16643
Wiring devices / Traditional wiring devices / IDEA / Devices

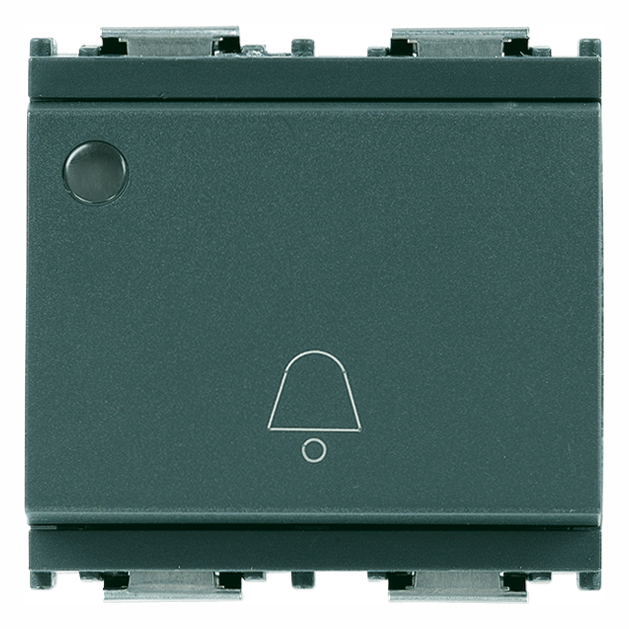

SET/RESET device grey
SET/RESET push button for emergency call system, visible in darkness, 2 NO 5 A 250 V~ relay outputs, for acoustic and optical signalling, supply voltage 12 V~ 50-60 Hz or 12-24 V d.c. (SELV), grey - 2 modules. SET with built-in or from peripheral NC push buttons connected in series. RESET with peripheral NC buttons connected in series

Product Status
2 - Will be discontinued

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (725 kb)

---

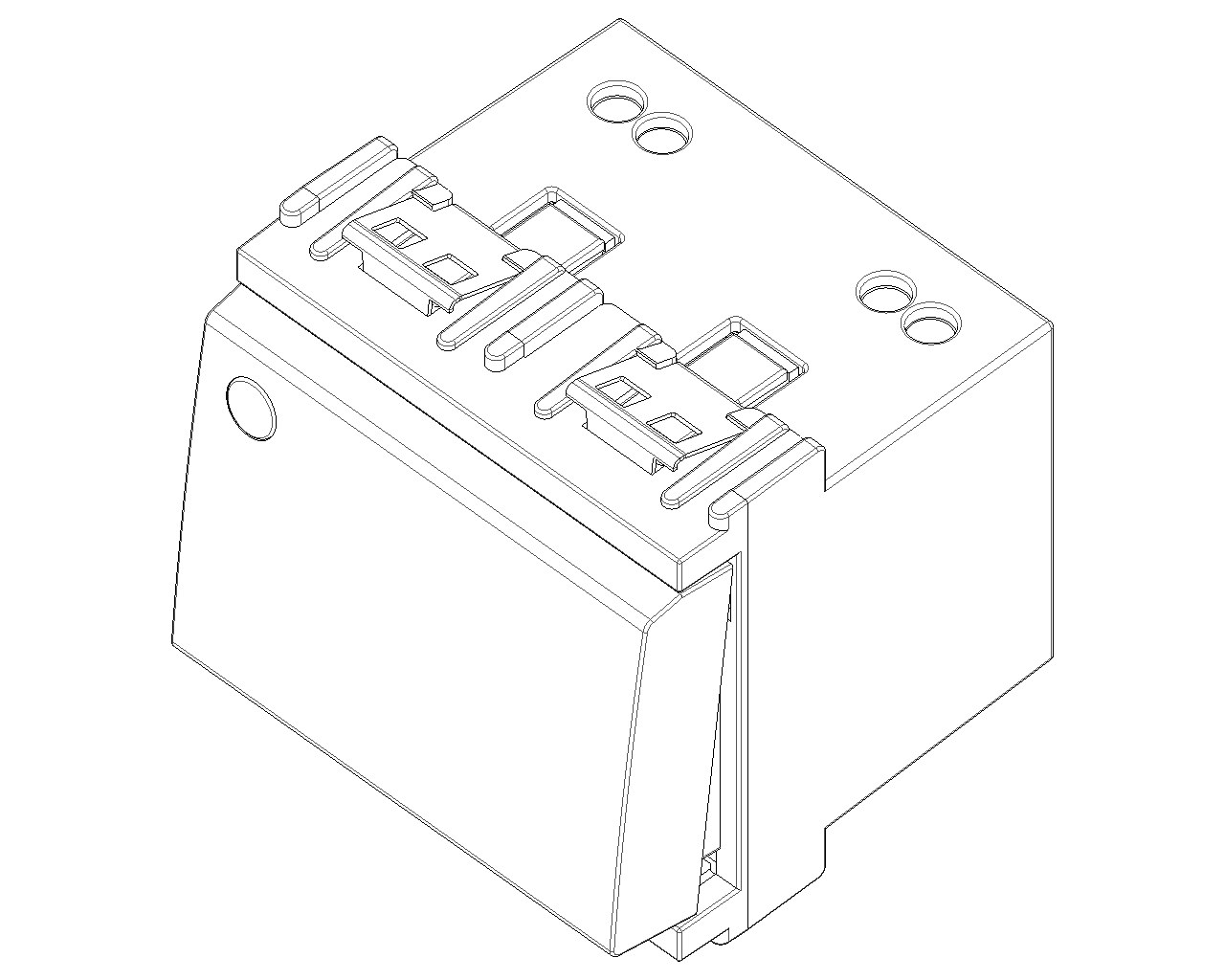

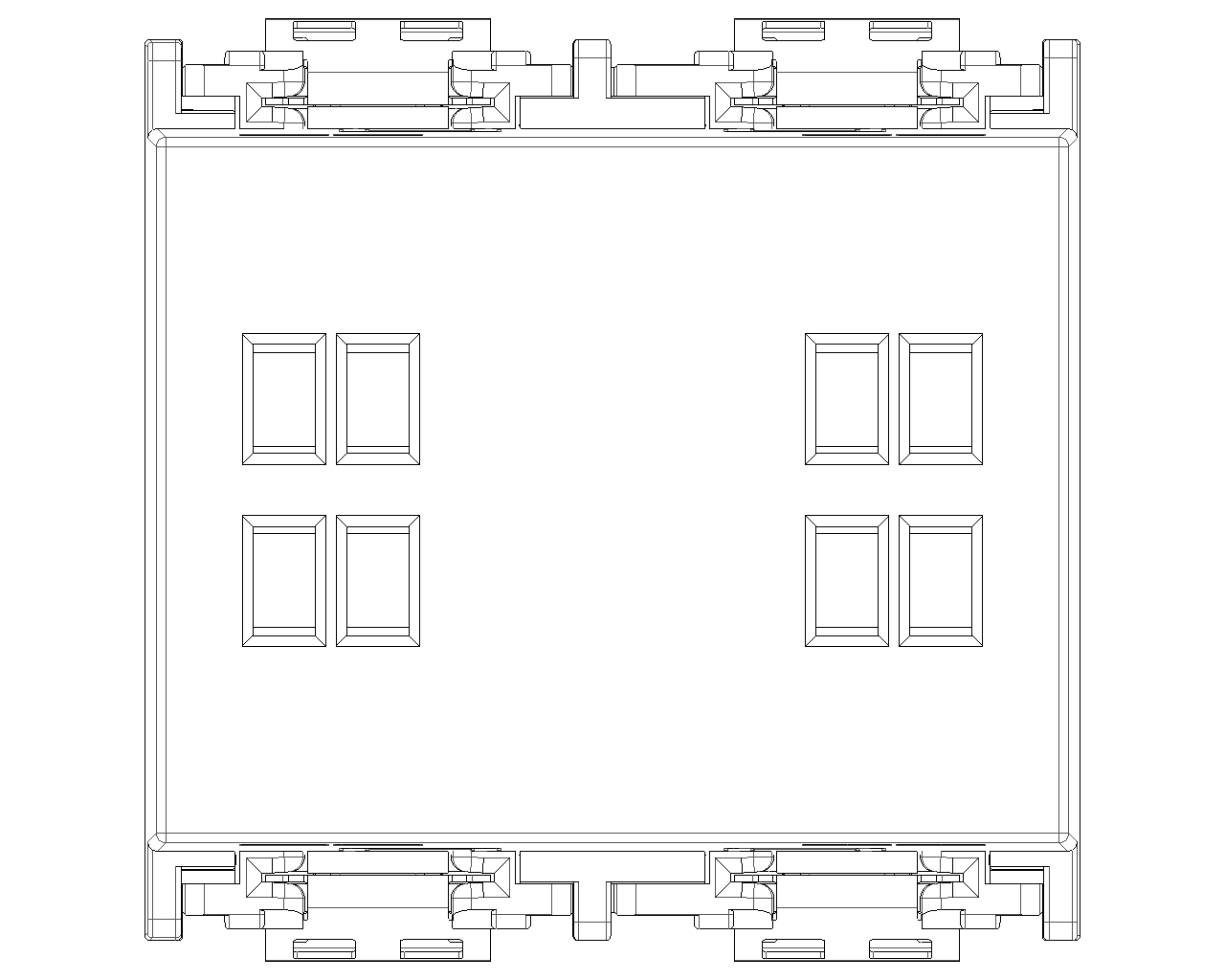

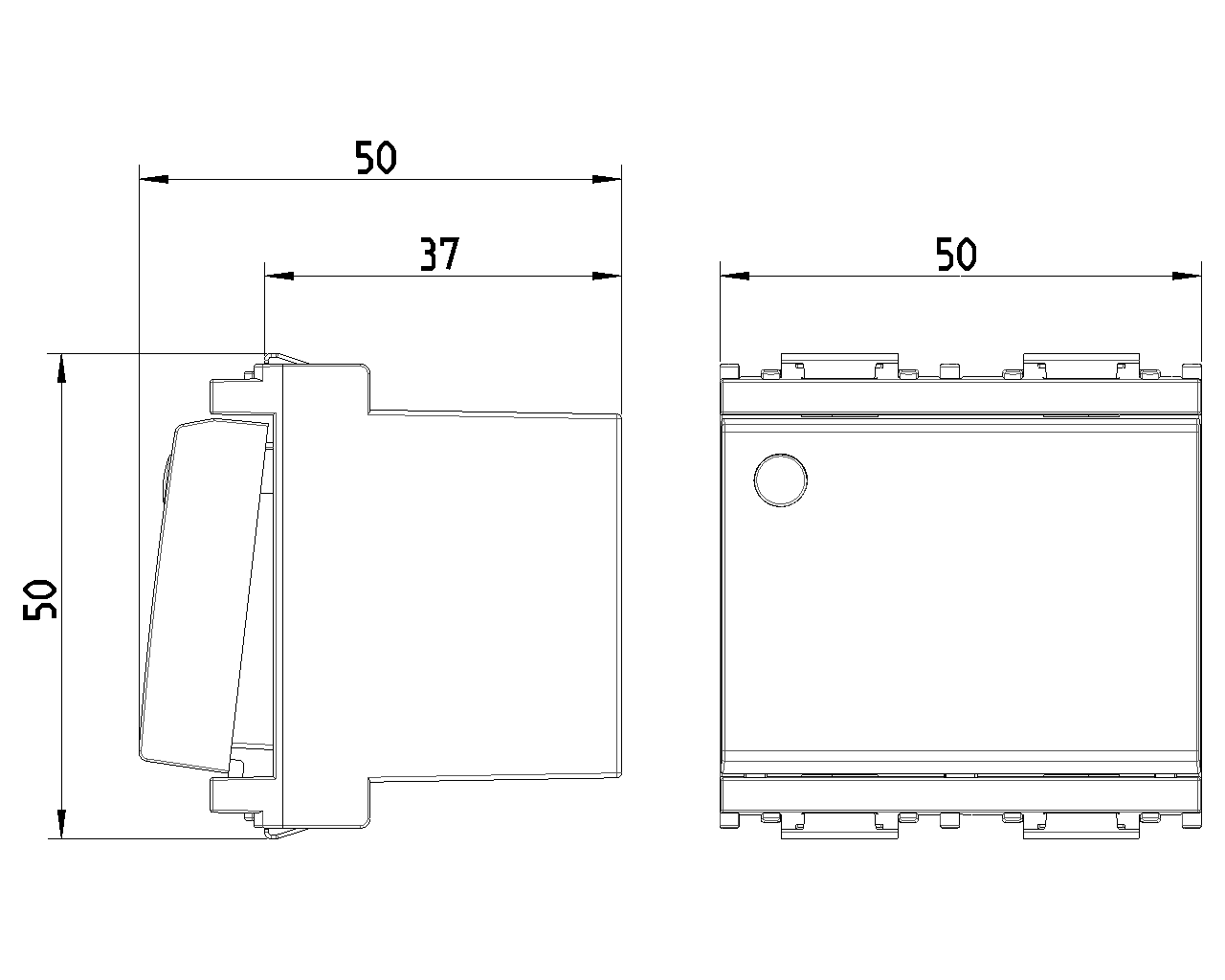

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Electronic insert for domestic switching devices

Model
Other

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
2

Radio-controlled
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7015

Transparent
No

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8007352136854

1 NR

11.2x9.6x9.8 [cm]

148.8 [g]
