IR-receiver + dimmer 230V grey - 16625

Pdf
Vimar - 16625 - IR-receiver + dimmer 230V grey
Vimar - 16625 - IR-receiver + dimmer 230V grey

16625
Wiring devices / Traditional wiring devices / IDEA / Devices

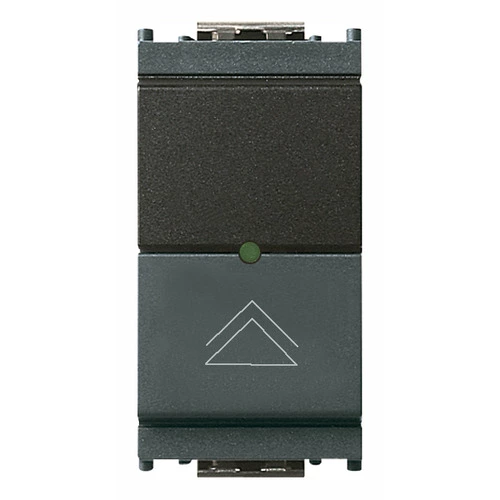

IR-receiver + dimmer 230V grey
Infrared receiver with dimmer, supply voltage 230 V~ 50 Hz for: 40-450 W incandescent lamps, 40-450 VA ferromagnetic transfomers and 40-300 VA inductive response electronic transformers, control and regulation with built-in push button, from 01849 remote control or from NO peripheral push buttons, MASTER function, MOSFET+TRIAC technology, visible in darkness, grey

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16625
PNG DXF
rear view art. 16625
PNG DXF
3D view art. 16625
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Infrared
Type of load
Inductive load
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
Yes
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 50,01 HZ
Control voltage
230,00 - 230,01 V
Device width
24,80 mm
Device height
50,10 mm
Device depth
51,60 mm

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352301481
1 NR
5.1x4.3x5.3 [cm]
54.27 [g]
Barcode Qty 5 NR
8007352301498
5 NR
14.4x11.6x6 [cm]
324.8 [g]
