SLAVE dimmer 120-230V grey - 16609

Pdf
Vimar - 16609 - SLAVE dimmer 120-230V grey
Vimar - 16609 - SLAVE dimmer 120-230V grey

16609
Wiring devices / Traditional wiring devices / IDEA / Devices

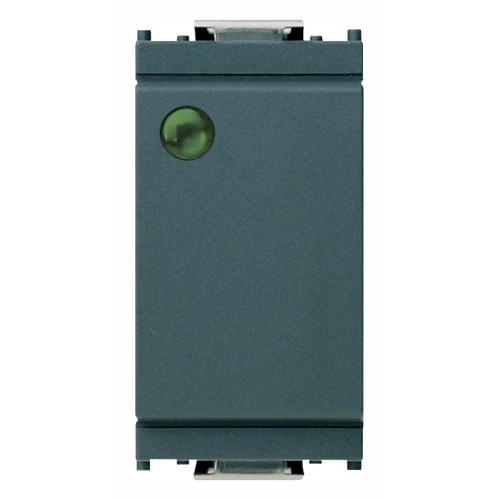

SLAVE dimmer 120-230V grey
SLAVE dimmer, supply voltage 120-230 V~ 50-60 Hz for: 40-500/40-800 W incandescent lamps and 40-300/40-500 VA ferromagnetic transformers, control from 16608 dimmer, TRIAC technology, visible in darkness, grey

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16609
PNG DXF
rear view art. 16609
PNG DXF
3D view art. 16609
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Other
Type of load
Inductive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 230,00 V
Frequency
50,00 - 60,00 HZ
Control voltage
120,00 - 230,00 V
Device width
24,80 mm
Device height
50,10 mm
Device depth
51,00 mm
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352328242
1 NR
5.1x4.3x5.3 [cm]
50.93 [g]
Barcode Qty 5 NR
8007352328259
5 NR
14.4x11.6x6 [cm]
307.47 [g]
