Dimmer 230V 100-500W +push grey - 16563

Pdf
Vimar - 16563 - Dimmer 230V 100-500W +push grey
Vimar - 16563 - Dimmer 230V 100-500W +push grey

16563
Wiring devices / Traditional wiring devices / IDEA / Devices

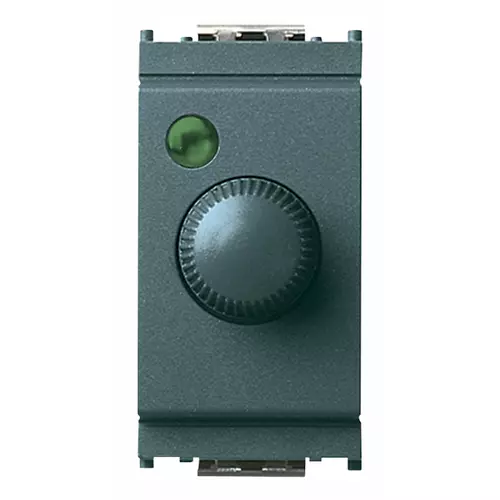

Dimmer 230V 100-500W +push grey
Dimmer 230 V~ 50-60 Hz for: 100-500 W incandescent lamps, control by push-push 2-way switch, regulation by rotary potentiometer, visible in darkness, grey

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16563
PNG DXF
rear view art. 16563
PNG DXF
3D view art. 16563
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn/push button
Type of load
Resistive load
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
24,80 mm
Device height
50,10 mm
Device depth
58,20 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352075016
1 NR
5.3x3.9x7.6 [cm]
66.13 [g]
Barcode Qty 10 NR
8007352075023
10 NR
28.1x13.1x6 [cm]
743.4 [g]
Barcode Qty 120 NR
8007352657199
120 NR
38.5x29x30 [cm]
9,784.8 [g]
Barcode Qty 2,400 NR
8007352587670
2,400 NR
120x80x105 [cm]
202,696 [g]
