Dimmer 120V 30-500W/30-300VA grey - 16557

Pdf
Vimar - 16557 - Dimmer 120V 30-500W/30-300VA grey
Vimar - 16557 - Dimmer 120V 30-500W/30-300VA grey

16557
Wiring devices / Traditional wiring devices / IDEA / Devices

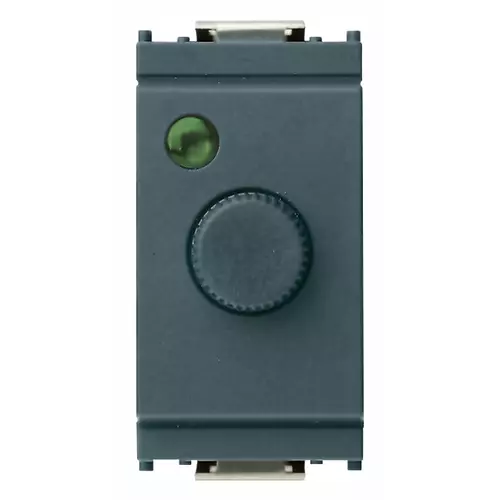

Dimmer 120V 30-500W/30-300VA grey
Dimmer, 120 V~ 50-60 Hz, for: 30-500 W incandescent lamps, 30-300 VA ferromagnetic transformers, control and regulation by rotary potentiometer, visible in darkness, grey

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16557
PNG DXF
rear view art. 16557
PNG DXF
3D view art. 16557
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Turn button
Type of load
Inductive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
120,00 - 120,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
120,00 - 120,01 V
Device width
24,80 mm
Device height
50,10 mm
Device depth
58,20 mm

00. CE Marking - EU

19. NOM - Mexico

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352146457
1 NR
5.3x3.9x7.6 [cm]
48.27 [g]
Barcode Qty 20 NR
8007352146464
20 NR
28.1x13.1x11.3 [cm]
1,078.2 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
