Blank module smooth front grey - 16542

Pdf
Vimar - 16542 - Blank module smooth front grey
Vimar - 16542 - Blank module smooth front grey

16542
Wiring devices / Traditional wiring devices / IDEA / Blank module

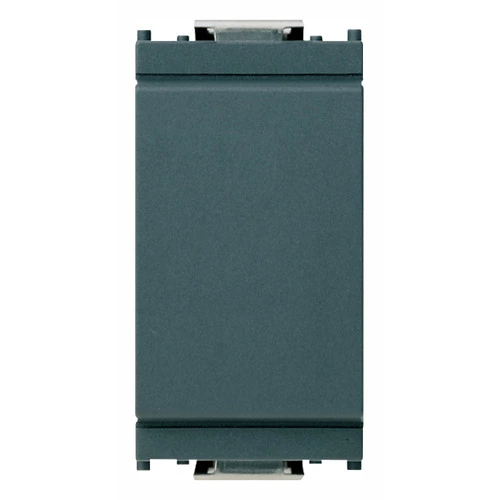

Blank module smooth front grey
Blank cover, smooth front, grey

Product Status
3 - Active

Drawings

view encumbered art. 16542
PNG DXF
rear view art. 16542
PNG DXF
3D view art. 16542
PNG DXF
Class group
Domestic switching devices
Class
Push button
Method of operation
Other
Number of modules (module system)
1
Nominal voltage
0 V
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Label space/information surface
Yes
Device width
24,80 mm
Device height
50,20 mm
Device depth
20,50 mm

00. CE Marking - EU

01. IMQ - Italy

96. Electrotechnical expert

Minimum order quantity: 100 NR

Barcode

Barcode Qty 1 NR
8007352082359
1 NR
2.5x5x2 [cm]
5.77 [g]
Barcode Qty 10 NR
8007352146051
10 NR
31x5.2x2 [cm]
58.2 [g]
Barcode Qty 100 NR
8007352083431
100 NR
28.2x11.1x10 [cm]
677.8 [g]
Barcode Qty 1,000 NR
8007352262782
1,000 NR
57.5x22.5x30 [cm]
7,329.33 [g]
Barcode Qty 21,000 NR
8007352308596
21,000 NR
80x120x103 [cm]
167,000 [g]
