Step marker lamp 12-24V SELV grey - 16445

Pdf
Vimar - 16445 - Step marker lamp 12-24V SELV grey
Vimar - 16445 - Step marker lamp 12-24V SELV grey

16445
Wiring devices / Traditional wiring devices / IDEA / Devices

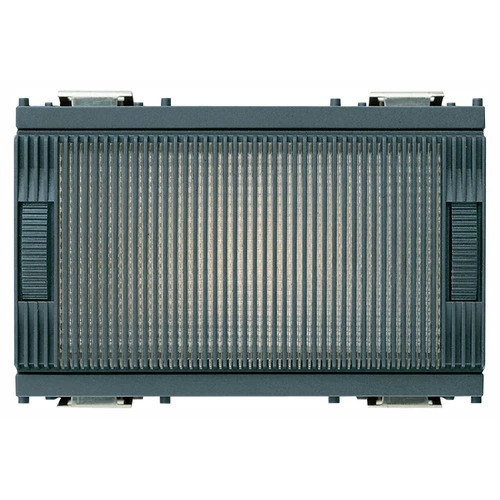

Step marker lamp 12-24V SELV grey
Step marker lamp with adjustable beam, for 12 or 24 V 3 W ø 7x31 mm lamp, grey - 3 modules. Provided without lamp

Product Status
2 - Will be discontinued

Drawings

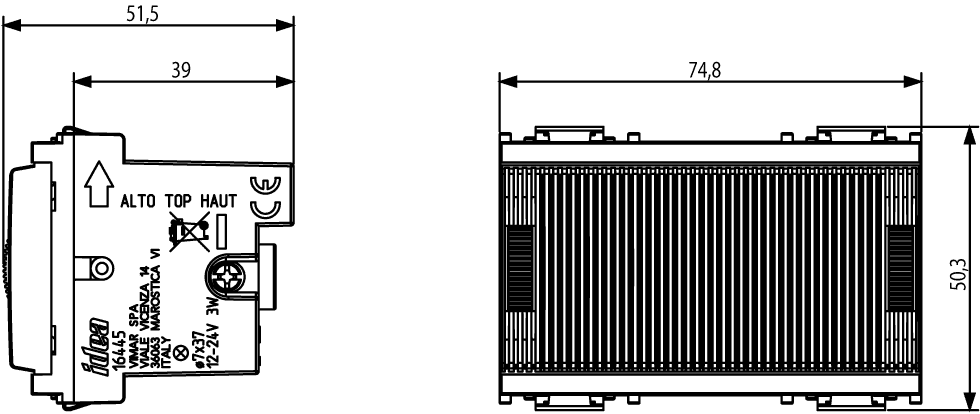

view encumbered art. 16445
PNG DXF
rear view art. 16445
PNG DXF
3D view art. 16445
PNG DXF
Class group
Domestic switching devices
Class
Information light signal for domestic switching devices
Number of modules (module system)
3
With light source
No
Lamp type
Other
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Colour light source
White
Suitable for degree of protection (IP)
IP40
Nominal voltage
24 V
Max. lamp power
3 W

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352006133
1 NR
5.2x5.7x7.6 [cm]
66.53 [g]
Barcode Qty 5 NR
8007352006140
5 NR
21.4x11.6x6 [cm]
388.53 [g]
