24V 50-60HZ buzzer white - 16406.B

Pdf
Vimar - 16406.B - 24V 50-60HZ buzzer white
Vimar - 16406.B - 24V 50-60HZ buzzer white

16406.B
Wiring devices / Traditional wiring devices / IDEA / Devices

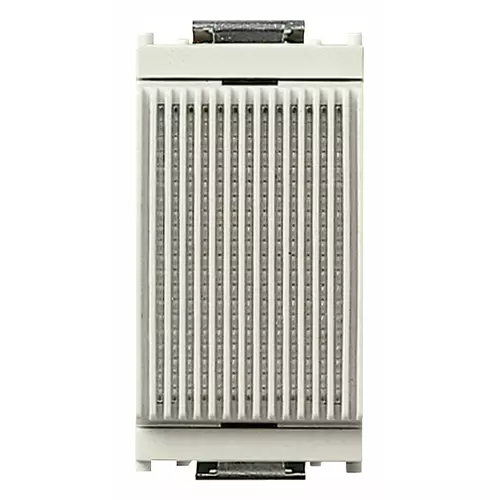

24V 50-60HZ buzzer white
Buzzer, 24 V~ (SELV) 50-60 Hz 8 VA, white

Product Status
3 - Active

Drawings

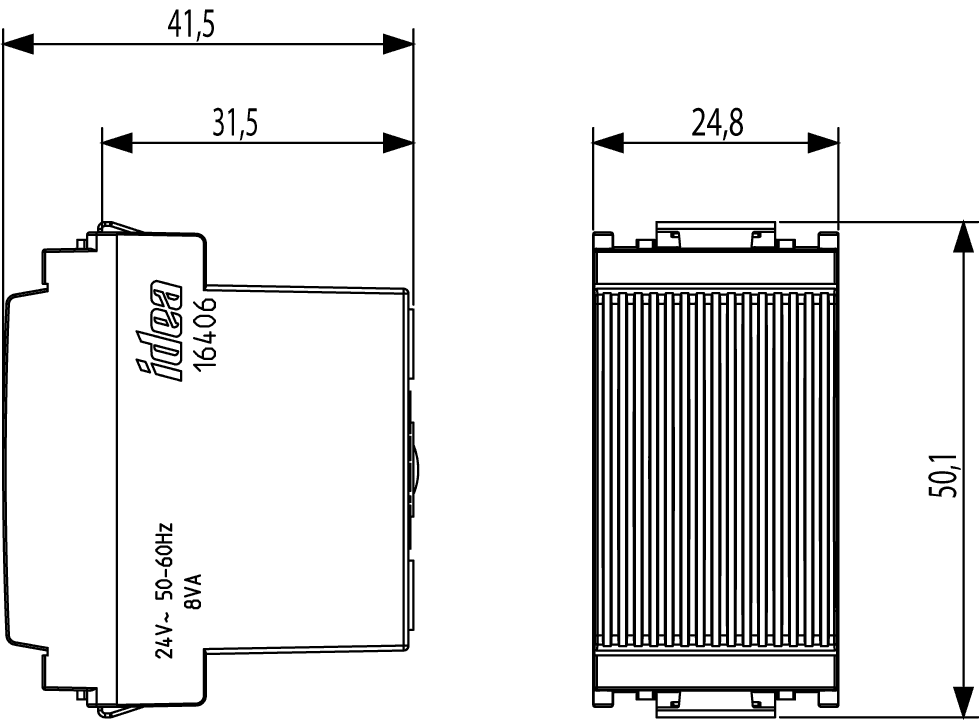

view encumbered art. 16406.B
PNG DXF

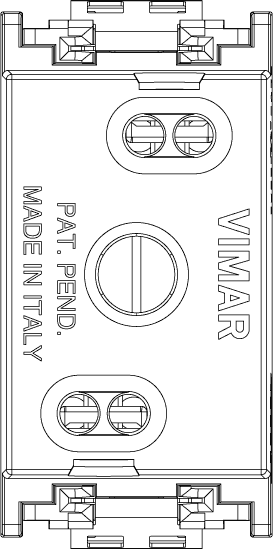

rear view art. 16406.B
PNG DXF

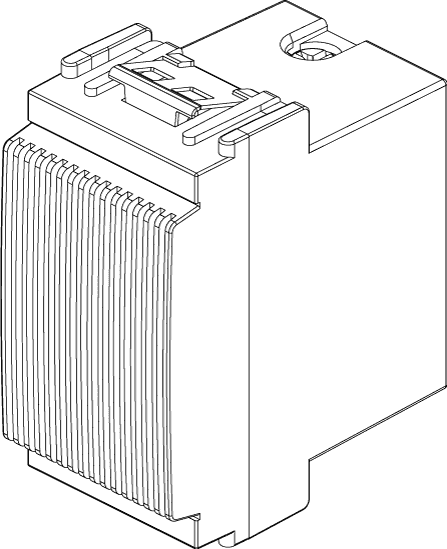

3D view art. 16406.B
PNG DXF
Class group
Optical and acoustic signalling equipment
Class
Buzzer
Nominal voltage
24 V
Type of current
AC
Electricity consumption
0,33 A
Degree of protection (IP)
IP30
Loudness
75 dB
Housing material
Plastic
Housing colour
White
Mounting method
Other
Built-in transformer
No

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352030459
1 NR
5.1x2.8x5.3 [cm]
55.13 [g]
Barcode Qty 10 NR
8007352263666
10 NR
14.4x11.6x6 [cm]
600.6 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
