USB socket connector grey - 16368

Pdf
Vimar - 16368 - USB socket connector grey
Vimar - 16368 - USB socket connector grey

16368
Wiring devices / Traditional wiring devices / IDEA / Devices

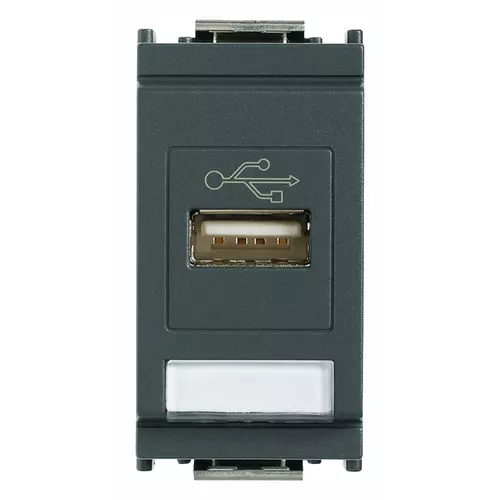

USB socket connector grey
Socket outlet with USB connector, screw terminals, grey

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16368
PNG DXF
rear view art. 16368
PNG DXF
3D view art. 16368
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
USB
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
1
With strain relief
Yes
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
41,30 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352420687
1 NR
5.1x4.3x5.3 [cm]
27.25 [g]
Barcode Qty 10 NR
8007352420694
10 NR
26.9x11.6x4.9 [cm]
316.38 [g]
Barcode Qty 200 NR
8007352637627
200 NR
47.5x27x29 [cm]
6,627.6 [g]
