RJ45 Cat5e Avaya UTP outlet white - 16358.1.B

Pdf
Vimar - 16358.1.B - RJ45 Cat5e Avaya UTP outlet white
Vimar - 16358.1.B - RJ45 Cat5e Avaya UTP outlet white

16358.1.B
System infrastructure / Netsafe structured wiring / IDEA / Devices

RJ45 Cat5e Avaya UTP outlet white
RJ45 outlet with AT&T/ Lucent Technologies/Avaya (MPS100E) connector, Cat. 5e, unshielded, T568A/B universal wiring, 8 contacts, insulation-piercing terminals, white

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

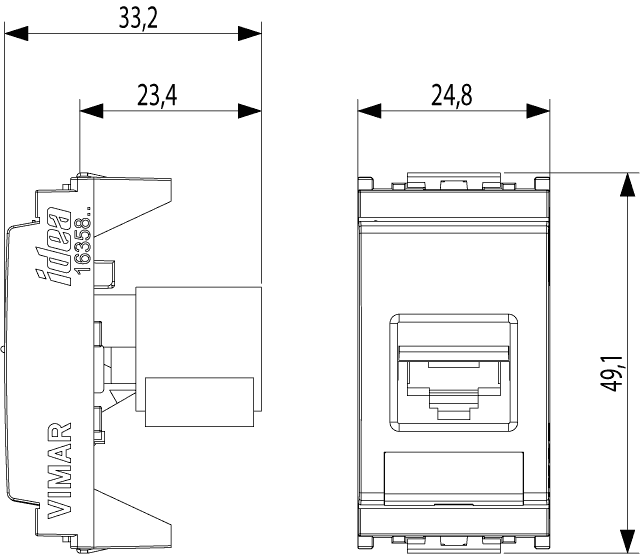

view encumbered art. 16358.1.B
PNG DXF

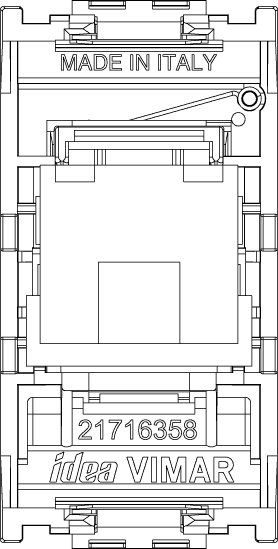

rear view art. 16358.1.B
PNG DXF
3D view art. 16358.1.B
PNG DXF
Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
No
Category
5E
Connection type
Crimp
Special tool necessary
Yes
Suitable for round cable
Yes
Suitable for flat cable
Yes
Suitable for litz wire conductor
No
Colour
White
Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352101500
1 NR
5.3x3.9x7.6 [cm]
23.27 [g]
Barcode Qty 10 NR
8007352101517
10 NR
28.1x13.1x6 [cm]
322.33 [g]
