Two phone jacks RJ11 6/4 grey - 16338

Pdf
Vimar - 16338 - Two phone jacks RJ11 6/4 grey
Vimar - 16338 - Two phone jacks RJ11 6/4 grey

16338
Wiring devices / Traditional wiring devices / IDEA / Devices

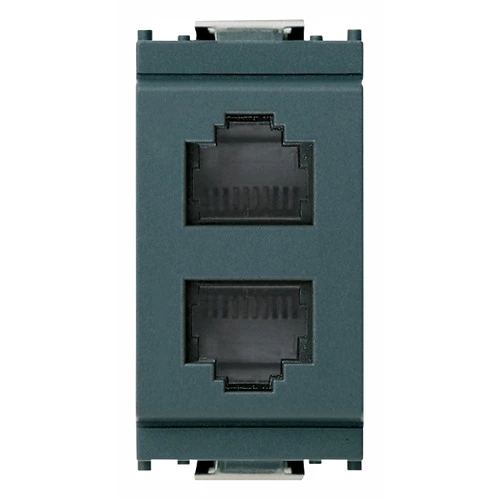

Two phone jacks RJ11 6/4 grey
Double RJ11 phone jack, 6-position 4-conductor (6/4), screw terminals, grey

Product Status
2 - Will be discontinued

Drawings

view encumbered art. 16338
PNG DXF
rear view art. 16338
PNG DXF
3D view art. 16338
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
41,00 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352100152
1 NR
6x2.8x5.3 [cm]
30.53 [g]
Barcode Qty 10 NR
8007352115163
10 NR
14.4x13.1x6 [cm]
355.07 [g]
