RJ45 phone jack 8/8 grey - 16337

Pdf
Vimar - 16337 - RJ45 phone jack 8/8 grey
Vimar - 16337 - RJ45 phone jack 8/8 grey

16337
System infrastructure / Netsafe structured wiring / IDEA / Devices

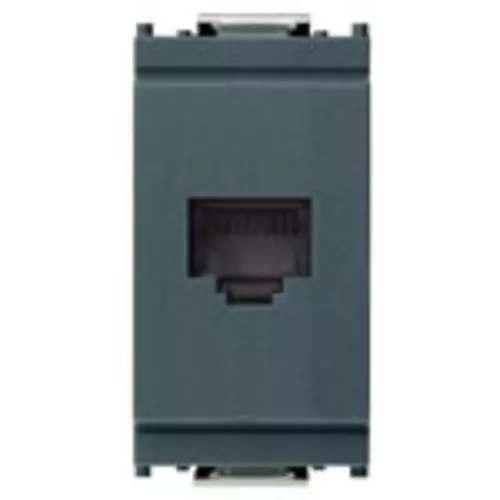

RJ45 phone jack 8/8 grey
RJ45 phone jack, 8-position 8-conductor (8/8), screw terminal, grey

Product Status
3 - Active

Drawings

view encumbered art. 16337
PNG DXF
rear view art. 16337
PNG DXF
3D view art. 16337
PNG DXF
Class group
Data and telecommunication
Class
Modular connector
Model
Bus (jack)
Type of connector
RJ45 8(8)
Screened
No
Category
Other
Connection type
Other
Special tool necessary
No
Suitable for round cable
Yes
Suitable for flat cable
No
Suitable for litz wire conductor
No
Suitable for solid conductors
No
Colour
Other
Transparent
No

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352002647
1 NR
5.1x2.8x5.3 [cm]
27 [g]
Barcode Qty 20 NR
8007352003347
20 NR
27x11.6x6 [cm]
608.8 [g]
Barcode Qty 120 NR
8007352650374
120 NR
37.5x30x13.5 [cm]
4,008 [g]
Question: Can I create an Ethernet connection between 2 rooms with two Idea RJ45 socket outlets 16337?
Answer: Since product is a telephone socket outlet in category 3 and not a data socket outlet, it is not normally used to create data networks but only telephone networks with an RJ45 fixing.
