RJ12 phone jack 6/6 white - 16336.B

Pdf
Vimar - 16336.B - RJ12 phone jack 6/6 white
Vimar - 16336.B - RJ12 phone jack 6/6 white

16336.B
Wiring devices / Traditional wiring devices / IDEA / Devices

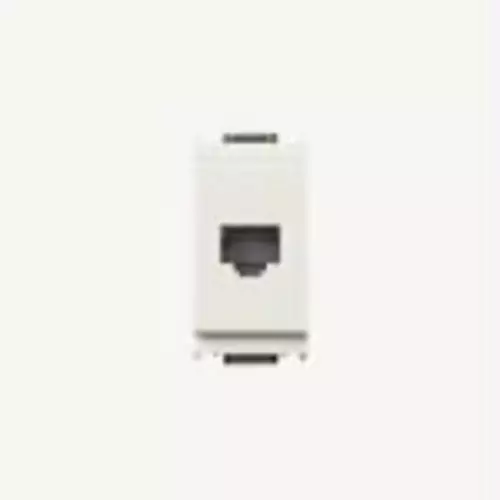

RJ12 phone jack 6/6 white
RJ12 phone jack, 6-position 6-conductor (6/6), screw terminals, white

Product Status
2 - Will be discontinued

Drawings

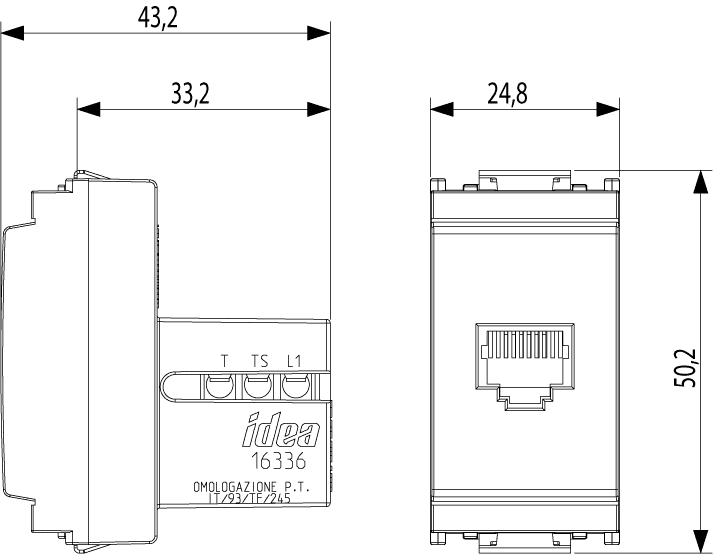

view encumbered art. 16336.B
PNG DXF

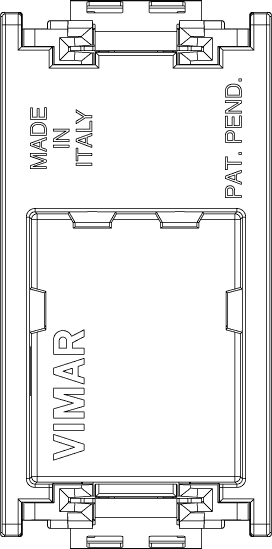

rear view art. 16336.B
PNG DXF

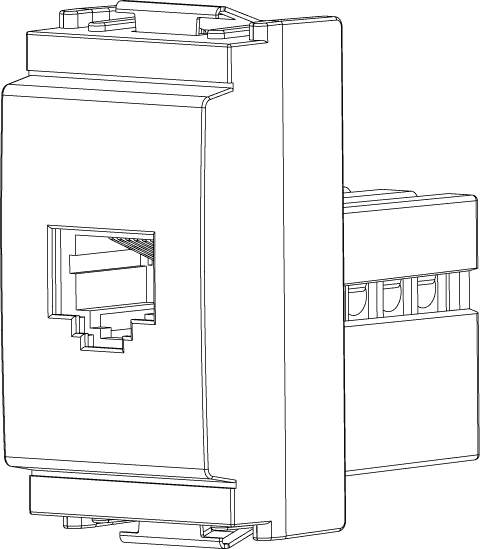

3D view art. 16336.B
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9001
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
43,40 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352053427
1 NR
5.1x2.8x5.3 [cm]
25.27 [g]
Barcode Qty 20 NR
8007352053700
20 NR
27x11.6x6 [cm]
574.87 [g]
