RJ11 phone jack 6/4 grey - 16335

Pdf
Vimar - 16335 - RJ11 phone jack 6/4 grey
Vimar - 16335 - RJ11 phone jack 6/4 grey

16335
Wiring devices / Traditional wiring devices / IDEA / Devices

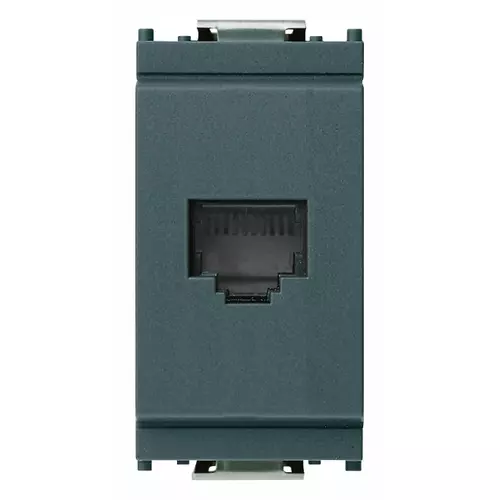

RJ11 phone jack 6/4 grey
RJ11 phone jack, 6-position 4-conductor (6/4), screw terminals, grey

Product Status
3 - Active

Drawings

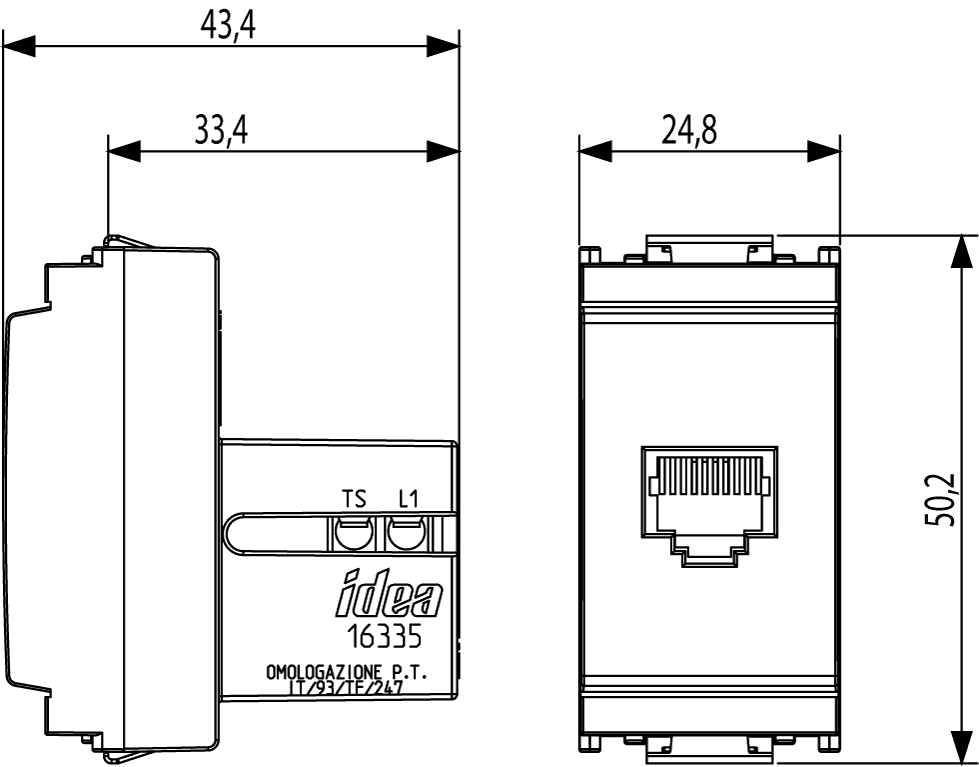

view encumbered art. 16335
PNG DXF

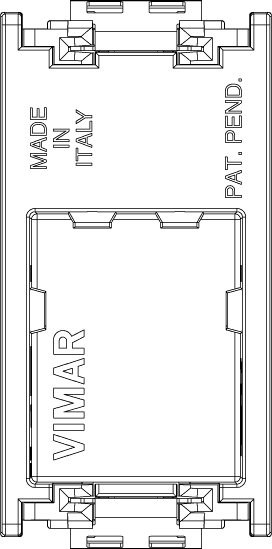

rear view art. 16335
PNG DXF

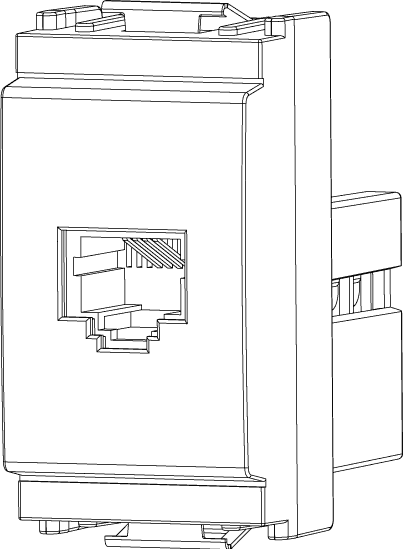

3D view art. 16335
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
UAE/IAE (ISDN)
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Type of fastening
Clamp mounting
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
43,40 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352002623
1 NR
5.1x2.8x5.3 [cm]
23.53 [g]
Barcode Qty 20 NR
8007352003323
20 NR
27x11.6x6 [cm]
541.8 [g]
Barcode Qty 240 NR
8007352263222
240 NR
50.5x20x28 [cm]
6,956.67 [g]
