2P 10A outlet grey - 16305

Pdf
Vimar - 16305 - 2P 10A outlet grey
Vimar - 16305 - 2P 10A outlet grey

16305
Wiring devices / Traditional wiring devices / IDEA / Devices

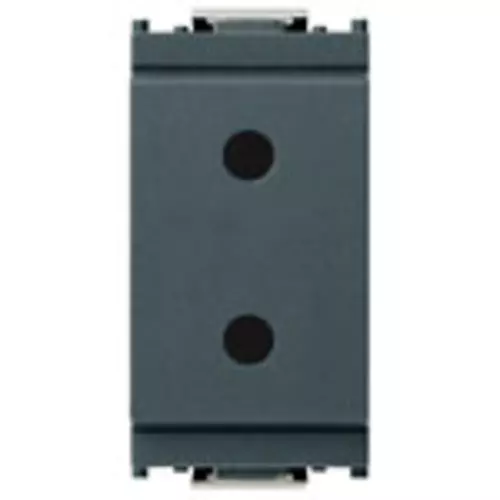

2P 10A outlet grey
2P 10 A 250 V~ socket outlet, recessed socket-contacts, for 2P plugs with ø 4 mm pins, 19 mm distance between centres, grey

Product Status
2 - Will be discontinued

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
24,80 mm
Device height
50,10 mm
Device depth
36,00 mm
Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352021877
1 NR
4.1x2.8x5.3 [cm]
23 [g]
Barcode Qty 20 NR
8007352000995
20 NR
21.4x11.6x6 [cm]
516.27 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
