Two 2P+E 15A outlets USA+GFCI grey - 16296

Pdf
Vimar - 16296 - Two 2P+E 15A outlets USA+GFCI grey
Vimar - 16296 - Two 2P+E 15A outlets USA+GFCI grey

16296
Wiring devices / Traditional wiring devices / IDEA / Devices

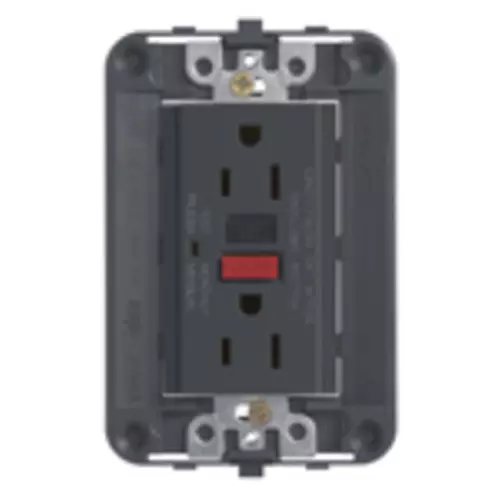

Two 2P+E 15A outlets USA+GFCI grey
Double 2P+E 15 A 125 V~ socket outlet, American standard with GFCI, with built-in mounting frame, to complete with 3-module cover plate, grey

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 16296
PNG DXF
3D view art. 16296
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7015
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
Yes
With miniature fuse
No
Mounting method
Flush-mounted
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
125 V
Frequency
60,00 - 60,01 HZ
Rated fault current
6 mA
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
73,00 mm
Device height
107,00 mm
Device depth
41,10 mm

00. CE Marking - EU

19. NOM - Mexico

29. QCERT - Colombia

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352333741
1 NR
6.7x5.2x12 [cm]
145.4 [g]
Barcode Qty 5 NR
8007352333758
5 NR
29.5x13.5x7.7 [cm]
808 [g]
Barcode Qty 95 NR
8007352333765
95 NR
55.5x37.5x29 [cm]
16,390 [g]
