USB supply unit 5V 1,5A 1M grey - 16292

Pdf
Vimar - 16292 - USB supply unit 5V 1,5A 1M grey
Vimar - 16292 - USB supply unit 5V 1,5A 1M grey

16292
Wiring devices / Traditional wiring devices / IDEA / Devices

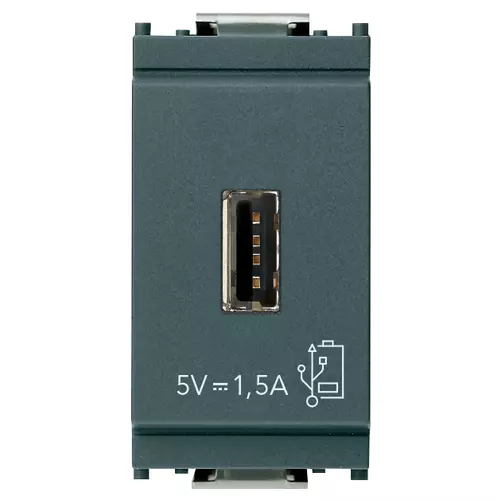

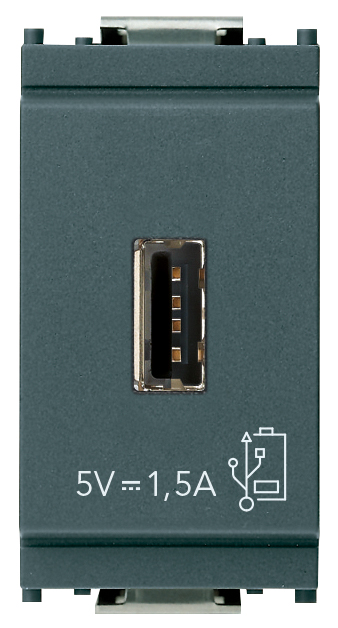

USB supply unit 5V 1,5A 1M grey
5 V 1,5 A power supply unit for electronic devices, 1 USB port, supply voltage 120-240 V~ 50/60 Hz, grey

Product Status
2 - Will be discontinued

Alternative products

16292.AC.15
16292.AC.15 - A+C-USB supply unit 5V 3A 15W 1M grey

Sheets, Manuals, Documentation

Drawings

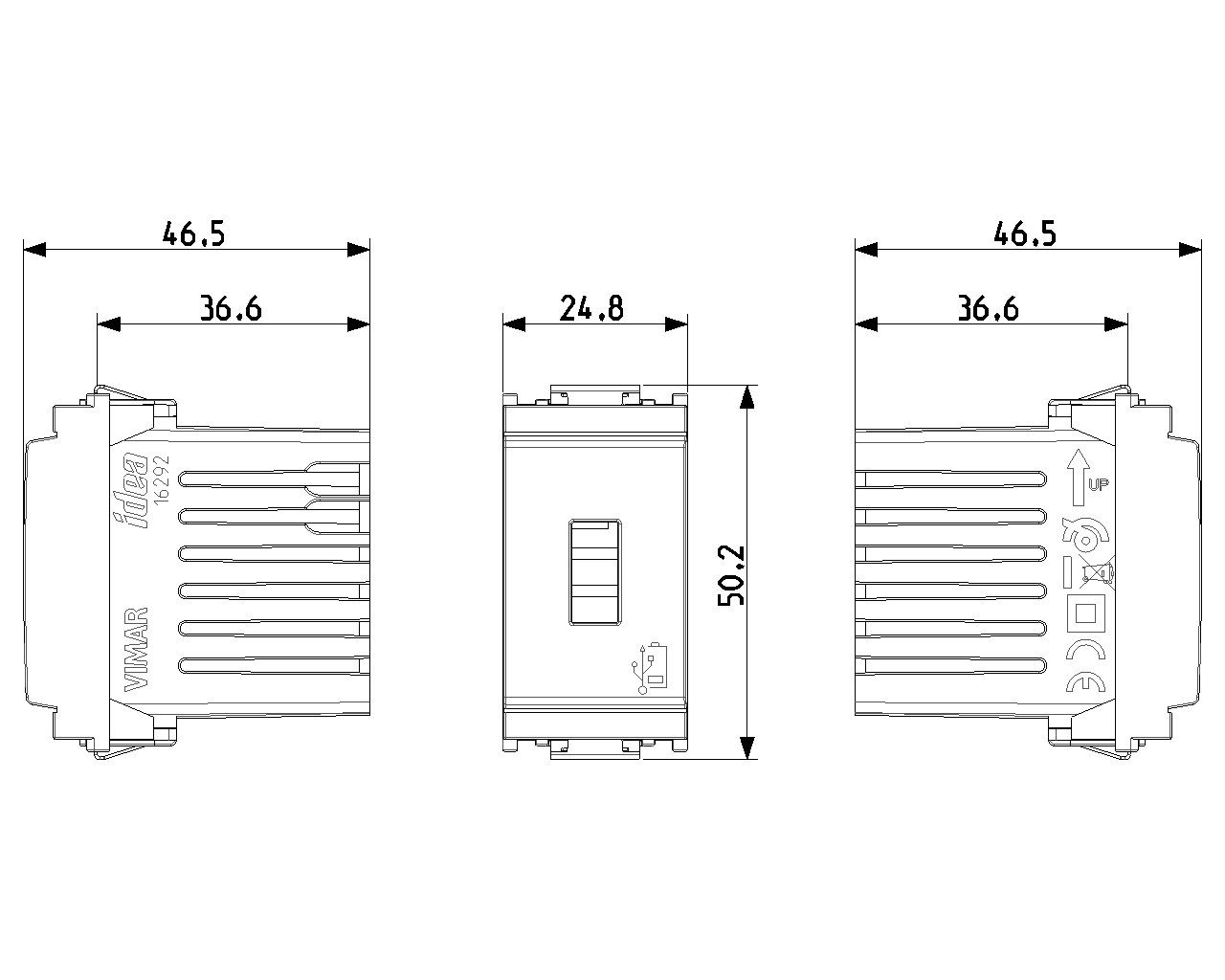

view encumbered art. 16292
PNG DXF
rear view art. 16292
PNG DXF
3D view art. 16292
PNG DXF
Class group
Domestic switching devices
Class
USB power supply
Model
Bus
Operating voltage
120,00 - 230,00 V
Frequency
50,00 - 60,00 HZ
Max. output current
1.500 mA
Mounting method
Flush-mounted
Colour
Grey
RAL-number
0

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352573840
1 NR
5.2x3.5x5.3 [cm]
43.5 [g]
Barcode Qty 10 NR
8007352573857
10 NR
14.4x13.1x6 [cm]
485.3 [g]
Barcode Qty 60 NR
8007352765436
60 NR
27x23x12.5 [cm]
2,800 [g]
Barcode Qty 200 NR
8007352642225
200 NR
50.5x20x28 [cm]
10,140 [g]
